White Box Testing: Definition, Advantages, Types & Techniques

In modern software development, evaluating application health solely through external inputs and outputs is insufficient. While functional validation confirms that a system produces expected results, it reveals nothing about structural efficiency, memory safety, or execution paths hidden beneath the surface.

Access to the source code allows testers to examine how the software works internally. Understanding internal logic enables engineering teams to identify edge-case vulnerabilities, dead code, and inefficient algorithms long before software reaches production.

White box testing is commonly used to evaluate the internal structure and logic of software. By testing the code directly, teams can find certain issues earlier and reduce the effort needed to fix them later.

In this article, we explain how white box testing works, when to use it, and which techniques can help evaluate internal code. We also cover common tools, practical examples, limitations, and the main white box testing advantages.

What Is White Box Testing?

White box testing is a software testing methodology where the internal structure, design, and code implementation of an application are visible to and evaluated by the tester.

Unlike black-box approaches that treat the system as an opaque entity, white box testing in software testing leverages source code transparency to construct targeted test cases around control flow, data pipelines, and internal logic gates.

Due to its transparent nature, this methodology is widely recognized under several alternative industry terms:

• Structural testing focuses on verifying the internal structural mechanics of the program.
• Glass box/clear box testing emphasizes absolute visibility into the underlying codebase.
• Open box testing highlights the unhindered access testers have to internal architectures.
• Code-based testing denotes that test scenarios are generated directly from the written code rather than high-level business requirements alone.

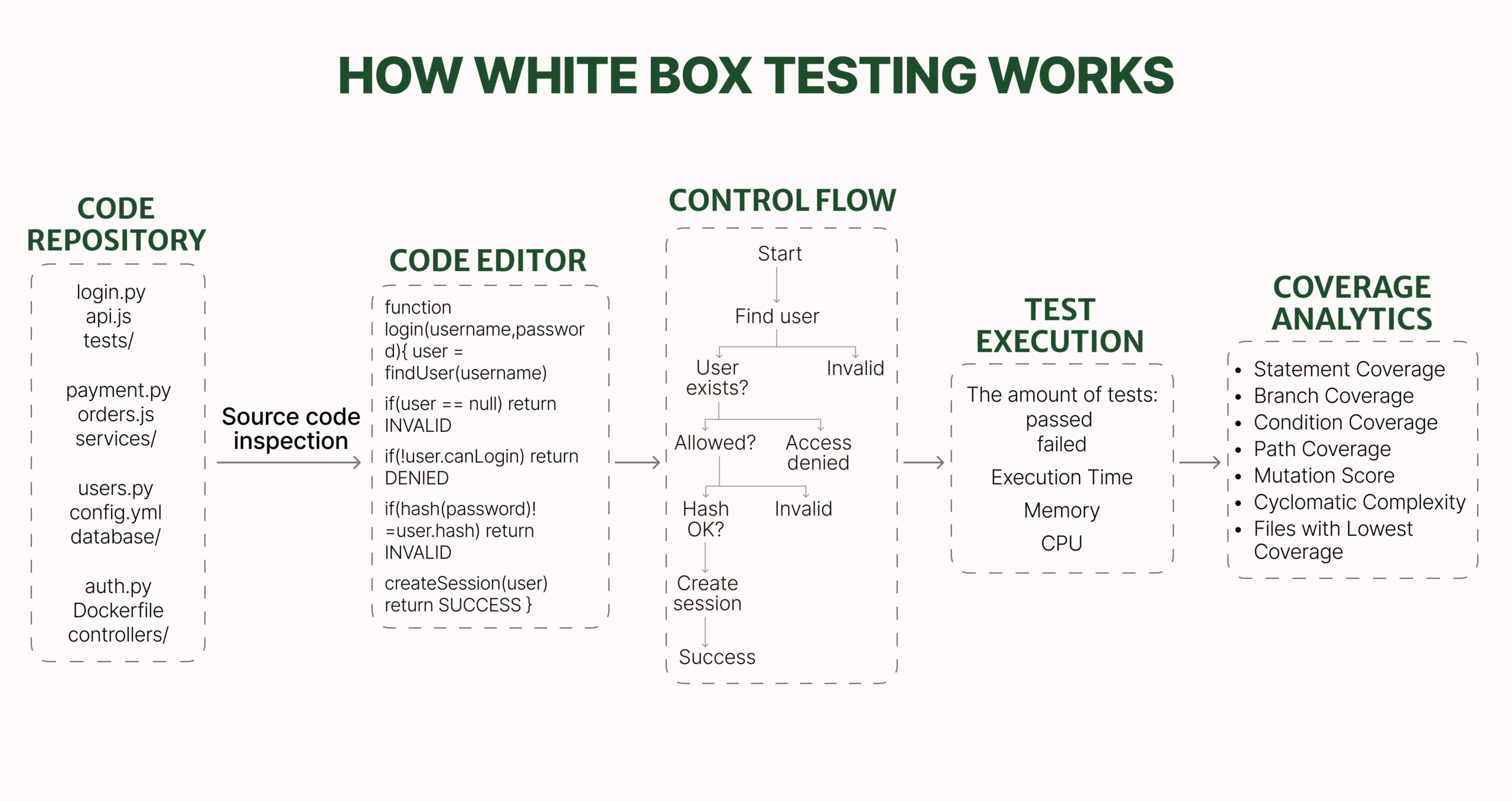

Executing structural analysis requires a systematic approach to reading and validating code mechanics:

[Source Code Access] ➔ [Architecture & Logic Analysis] ➔ [Test Scenario Generation] ➔ [Execution & Coverage Measurement]

• Source code access. Quality engineers gain direct read access to repositories, configuration scripts, and build artifacts.
• Architecture analysis. Engineers analyze data structures, execution paths, dependencies, and algorithm mechanics.
• Test scenario generation. Specific inputs are crafted to force execution through targeted decision nodes, conditional branches, and exception handlers.
• Coverage measurement. Automated tools execute the test suite, quantifying precisely which lines, branches, and execution paths were exercised.

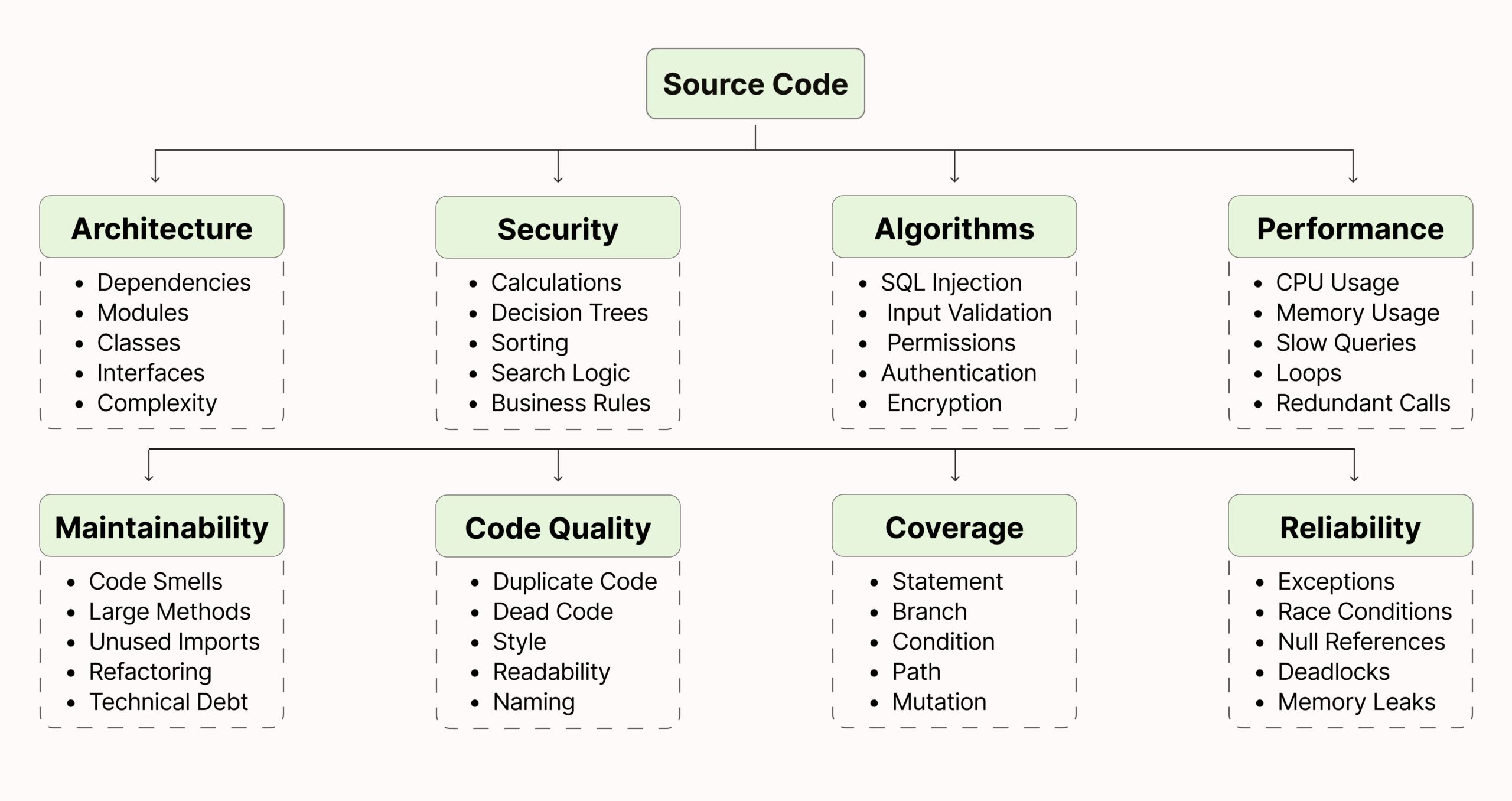

Core Objectives of White Box Tests

The primary goal of white box evaluation is to ensure internal operational integrity. Key technical objectives include:

• Verifying internal code structure. White box testing checks whether code components follow the intended architecture and established coding standards.
• Algorithm validation. It helps confirm that algorithms and business logic produce correct results under different conditions.
• Uncovering hidden defects. This approach can reveal issues such as memory leaks, null pointer errors, race conditions, and unreachable code that UI-based testing may miss.
• Ensuring secure code execution. Testers review input validation and permission checks to identify security weaknesses directly in the code.
• Improving maintainability. Complex or poorly structured code can be identified and improved, making the system easier to update over time.
• Optimizing code coverage. White box testing helps increase coverage across different parts and paths of the code, reducing the amount that remains untested.
• Performance optimization. It can expose inefficient loops and unnecessary database queries that slow down the application.

When to Use White Box Testing Methods

Integrating code-level validation into the software development lifecycle (SDLC) requires strategic timing. White box testing can be particularly useful in the following situations:

• During unit testing. Developers can use white box testing to check individual functions or classes soon after they are written.
• During integration testing. It helps verify how connected modules exchange data and work together.
• Prior to security audits. Teams can review the source code for vulnerabilities before penetration testing or compliance checks begin.
• In CI/CD pipelines. Automated tests and code coverage checks can run with each commit to help maintain consistent quality.
• When refactoring legacy code. White box testing also helps confirm that existing behavior still works correctly before older code is restructured.

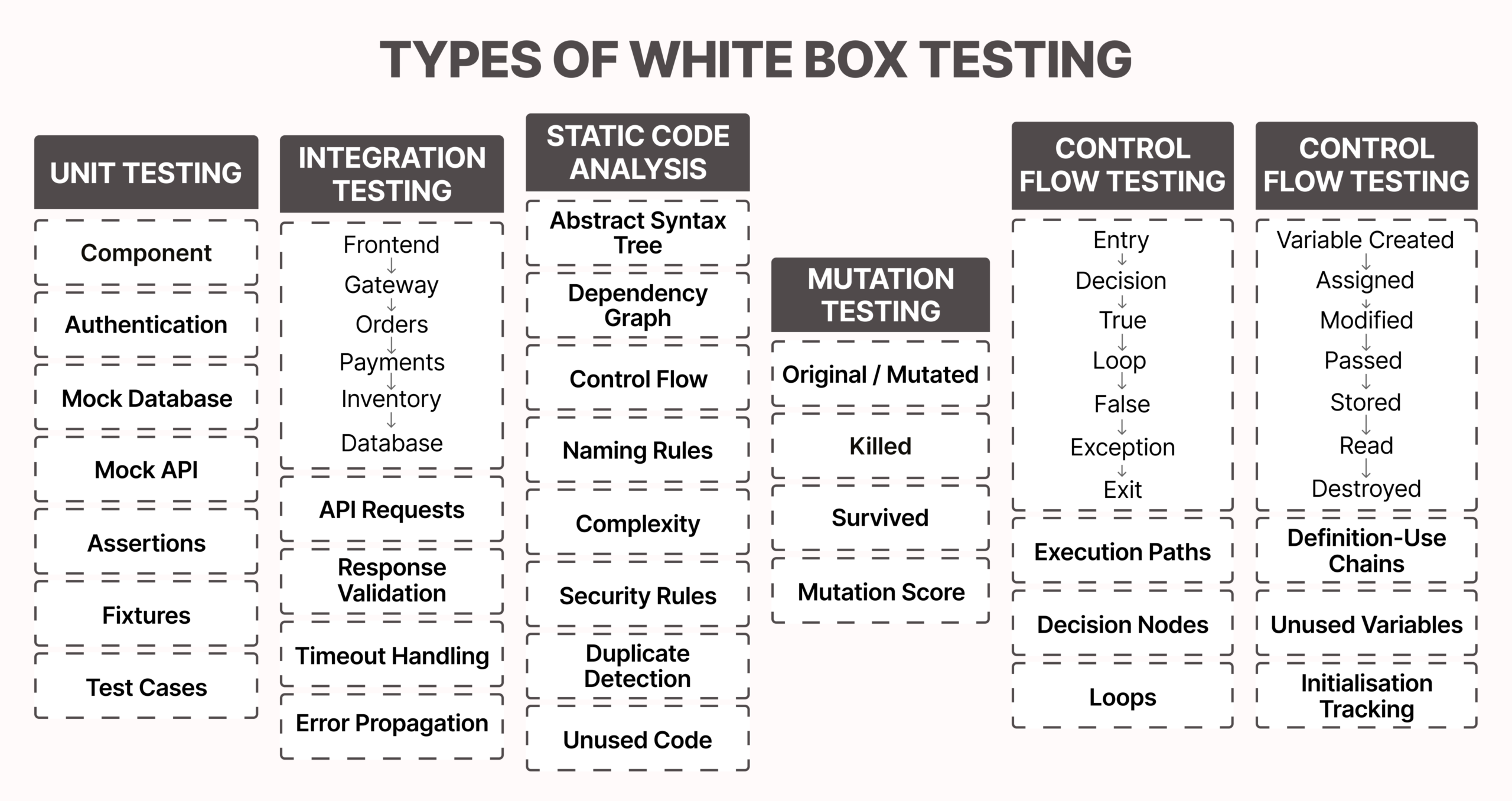

Types of White Box Testing

Selecting the appropriate structural approach depends on the target layer of the application stack. Here is a breakdown of the primary white box testing types.

Unit Testing

The initial layer of code verification. Developers and QA engineers write targeted unit testing suites to isolate individual functions or classes. By mocking external dependencies, unit tests validate that low-level logic functions correctly in absolute isolation.

Integration Testing

While unit tests validate isolated components, structural integration tests focus on the interfaces connecting those components. This methodology verifies data transformations, API payload structures, and error handling when two or more internal modules interact.

Static Code Analysis

Static analysis evaluates source code without executing the application. Automated SAST (Static Application Security Testing) tools and linters inspect the codebase against pre-defined rules to detect syntax anomalies, security flaws, style violations, and anti-patterns early in the SDLC.

Mutation Testing

A sophisticated technique for evaluating the quality of existing test suites. Mutation testing tools introduce minor modifications (mutants), such as changing an operator from > to >=, into the source code. If the existing test suite passes despite the mutation, it is flagged as weak or incomplete.

Control Flow Testing

This technique uses a program’s control structure to develop test cases. Engineers map out execution logic using control flow graphs (CFGs) to ensure that decision points, conditional jumps, and execution sequences perform predictably under all run-time conditions.

Data Flow Testing

Data flow evaluation tracks the lifecycle of variables across the program execution graph. It analyzes where variables are defined, modified, referenced, and destroyed, ensuring that uninitialized variables or memory leaks do not compromise application stability.

White Box Testing Techniques in Software Testing

White box testing uses several techniques to measure how thoroughly the internal code has been tested. Below is a detailed review of the primary white box testing techniques in software testing.

Statement Coverage

This technique lets you measure the percentage of executable statements in the source code that have been processed during testing. Test cases are designed to force execution through as many individual lines of code as possible.

• Advantages. Establishes a basic baseline for code coverage and quickly identifies completely unexecuted code blocks.
• Limitations. Insufficient on its own; it fails to evaluate conditional logic thoroughly. An if statement without an else branch can achieve 100% statement coverage even if the false condition is entirely broken.

Branch Coverage

Branch coverage aims to validate that every outcome (true and false) from every decision node (such as if, switch, or while statements) is executed at least once. Testers create scenarios that explicitly trigger both truthy and falsy pathways for every conditional branch.

• Advantages. Offers significantly higher defect detection capabilities than statement coverage by ensuring conditional jumps behave correctly.
• Limitations. Does not guarantee that all complex combinations of boolean conditions within a single decision node are validated.

Condition Coverage

This approach evaluates every individual boolean expression within a conditional decision statement for both true and false values.

If a decision node contains multiple evaluation parameters (e.g., if (A or B)), condition coverage mandates test cases where A is true/false AND B is true/false independently.

• Advantages. Uncovers logic flaws inside complex multi-condition decision blocks.
• Limitations. High condition coverage does not automatically guarantee full decision branch coverage if boolean expressions short-circuit during runtime execution.

Decision Coverage

Closely aligned with branch coverage, decision coverage ensures that every boolean expression evaluating to a control transfer point evaluates to both true and false. It focuses strictly on the overall result of the conditional block controlling the program flow.

• Advantages. Ensures that high-level operational flows branch correctly based on incoming logical checks.
• Limitations. Can obscure bugs hidden inside nested, un-evaluated sub-conditions.

Path Coverage

Path coverage measures execution across every linearly independent path through a program from entry to exit.

Cyclomatic complexity can help estimate the number of linearly independent paths that should be considered during testing.

• Advantages. Provides deeper coverage of execution flows than statement or branch coverage alone.
• Limitations. Can lead to path explosion in large, complex applications, making complete path coverage impractical for many complex applications.

Loop Testing

This is a technique explicitly focusing on the validity of loop constructs (for, while, do-while).

Tests evaluate loops at their boundaries: skip loop entirely, 1 pass, 2 passes, $m$ passes (where $m < n$), $n-1$ passes, $n$ passes, and $n+1$ passes (where $n$ is the maximum allowed iterations).

• Advantages. Exposes off-by-one errors, infinite loops, and boundary condition failures efficiently.
• Limitations. Focuses narrowly on iterative structures rather than overall application workflow logic.

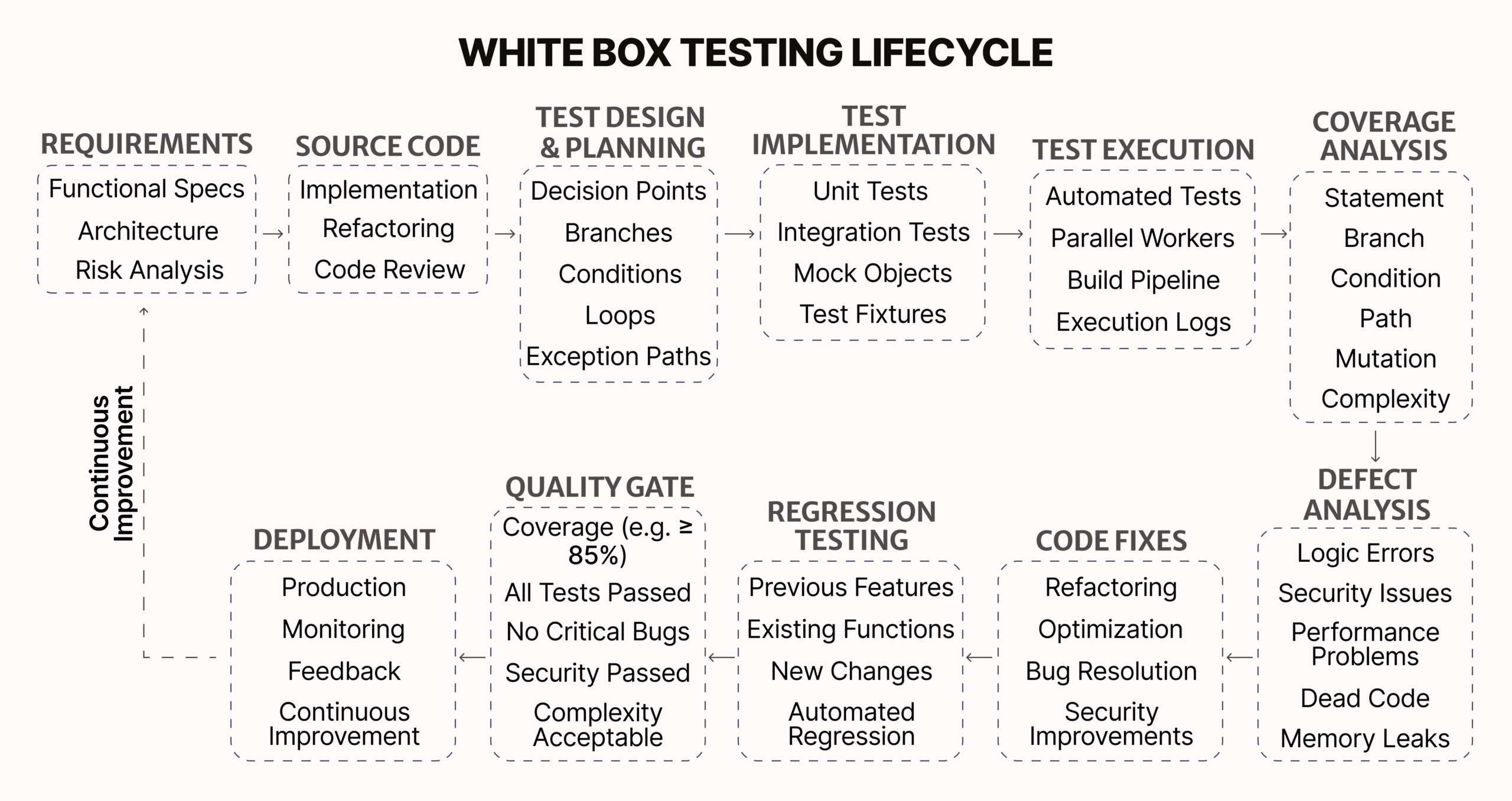

The White Box Testing Process

To execute structural testing systematically, engineering teams must follow a rigorous, repeatable workflow:

1. Requirements and architecture analysis. The team reviews technical specifications and design patterns to understand how the software is expected to work.
2. Source code inspection. Testers examine the internal logic and key code dependencies to see how different parts of the system operate.
3. Test scenario identification. The next step is to identify important decision points and high-risk execution paths that need closer testing.
4. Test case design. Test cases are created to exercise specific parts of the code, including targeted branches, interface parameters, test scripts, and mock objects.
5. Test execution. The prepared tests are run against the current codebase to check its behavior and uncover potential issues.
6. Results and coverage analysis. Teams review the test results and coverage data, while any failures are documented for further investigation.
7. Defect remediation. Developers fix identified problems such as logic errors, memory leaks, security weaknesses, or gaps in test coverage.
8. Re-testing and regression. After fixes are made, the tests are run again to confirm that the issues are resolved without affecting existing functionality.

White Box Testing Metrics

Quantifying testing efficiency requires metrics that measure code exposure and structural complexity.

Advantages and Limitations of White Box Testing

Advantages of White Box Testing

Here are the main benefits of white box testing:

• Early defect detection. White box testing can uncover logic errors and boundary issues while the code is still being developed, before they reach later testing stages.
• Higher code quality. It encourages cleaner code and better-structured software while helping teams reduce unnecessary complexity.
• Enhanced application security. By examining the code directly, teams can identify weaknesses such as SQL injection risks, buffer overflows, broken access controls, and other security issues.
• Codebase optimization. White box testing can reveal redundant logic and inefficient code that may affect application performance.
• Comprehensive code coverage. It provides clear coverage metrics that show which parts of the code have been tested and which still need attention.
• Simplified debugging. Since tests can point to specific functions or lines of code, developers can locate the source of a problem more quickly.
• Reduced production defect rate. Finding hidden issues earlier helps lower the risk of serious failures appearing in the live environment.
• Supports CI/CD. White box tests can be integrated into CI/CD pipelines to run automatically with each code change and support consistent quality checks.

Limitations of White Box Testing

White box testing also has several limitations

• Requires high-level programming expertise. Quality engineers must possess advanced programming skills to read, analyze, and write test suites against complex codebases.
• Resource- and time-intensive. Analyzing internal logic and designing exhaustive test suites for thousands of paths requires significant time and financial investment.
• Expensive for large legacy systems. Retrofitting comprehensive structural tests onto legacy, poorly documented codebases demands immense engineering effort.
• High maintenance overhead. As source code evolves rapidly, corresponding unit tests and mocks must be updated continuously to prevent broken test suites.
• Inability to detect missing requirements. Structural tests only validate the code that is written; if a business requirement was omitted entirely during development, code coverage metrics will not flag the gap.

Black Box vs White Box vs Grey Box Testing

Choosing the right testing strategy requires understanding how different approaches complement each other across the software testing lifecycle.

Black Box vs White Box Testing

The following matrix compares external functional testing with internal structural analysis:

Grey Box vs White Box Testing

While white box testing involves complete source code visibility and black box testing involves none, grey box testing occupies a powerful middle ground:

• Code transparency. White box testing typically involves detailed access to the source code, while grey box testing relies on partial knowledge of the system
• Test design. Structural testing generates test cases from internal control paths. Grey box tests are crafted using functional requirements paired with knowledge of data models and internal communication pathways.
• Security testing. In security testing, a white box approach may include source code review and static analysis because testers have detailed knowledge of the system.
• Integration scenarios. Grey box is highly effective for end-to-end integration and API testing, verifying how systems exchange data across architectural boundaries.
• Typical use cases. White box is preferred for unit tests, structural optimization, and static analysis. Grey box excels at verifying web services, distributed systems, and backend data integrity.

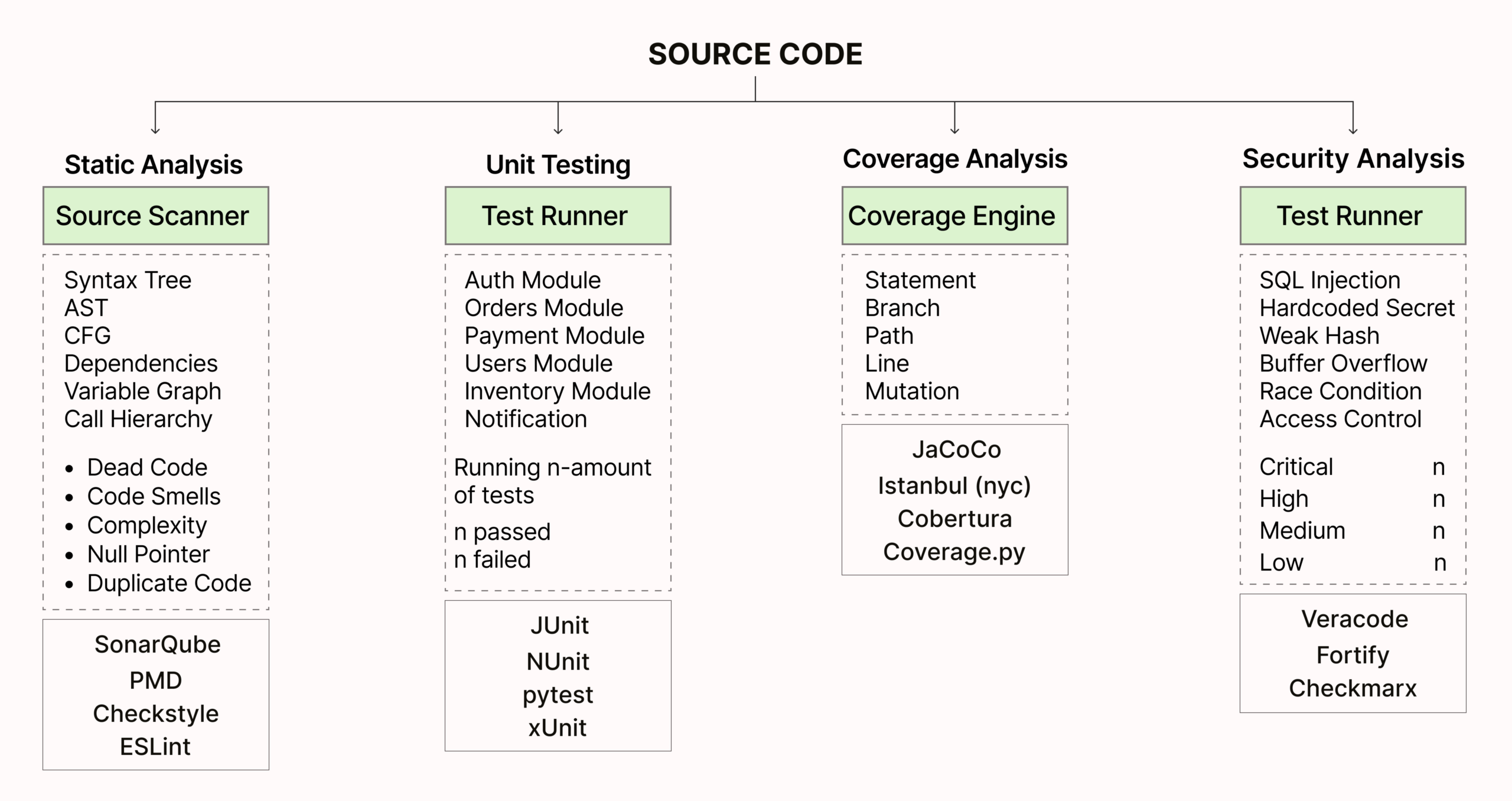

Tools Used for White Box Testing

Different tools can support white box testing depending on the programming language and type of analysis required.

Static Code Analysis (SAST)

• SonarQube. An enterprise platform for continuous code quality and security inspection, measuring technical debt, vulnerabilities, and coverage metrics across dozens of languages.
• PMD. A static source code analyzer that catches common flaws such as unused variables, empty catch blocks, and unnecessary object creation in Java and other languages.
• Checkstyle. A development tool that automates Java code formatting and style compliance against defined engineering standards.
• ESLint. The standard static analysis tool for JavaScript and TypeScript ecosystems, detecting patterns and programmatic bugs dynamically.

Unit Testing Frameworks

• JUnit. The standard framework for building repeatable, automated unit test suites in Java applications.
• NUnit. A widely adopted unit-testing framework for .NET platforms, supporting assertion-based testing across C# repositories.
• pytest. A flexible, feature-rich Python testing framework used for writing clean, readable, and scalable unit and integration tests.
• xUnit. A modern unit testing tool for .NET languages designed to promote clean architecture and test execution.

Code Coverage Analysis Tools

• JaCoCo. A Java code coverage library that measures statement, branch, and line coverage during test execution.
• Istanbul (nyc). The go-to code coverage tool for JavaScript and Node.js applications, tracking coverage across complex asynchronous workflows.
• Cobertura. A Java-based tool that calculates code coverage metrics through instrumented bytecode execution.
• Coverage.py. The primary coverage measurement tool for Python programs, identifying unexecuted code blocks during unit test runs.

Application Security Testing

• Veracode. An enterprise SAST and security platform providing deep static binary analysis to uncover structural vulnerabilities in production code.
• Fortify. Micro Focus Fortify offers enterprise-grade static application security testing, pinpointing security vulnerabilities deep within source code.
• Checkmarx. A powerful SAST solution designed to scan complex, multi-language codebases for security risks directly inside automated CI/CD pipelines.

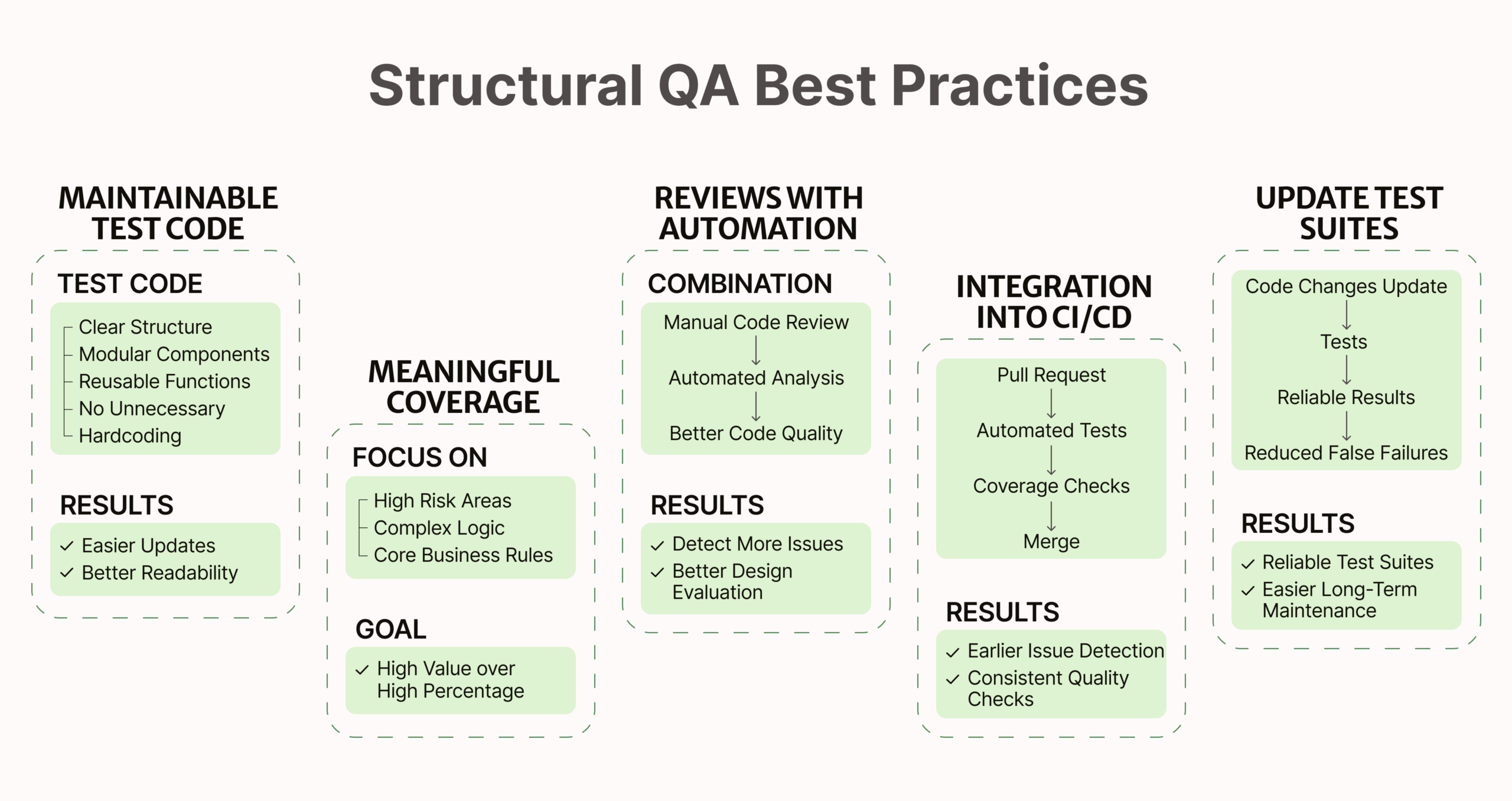

Best Practices for Executing Structural QA

To maximize ROI and prevent maintenance bottlenecks, engineering teams should adhere to proven structural testing principles:

• Write maintainable test code. Test code should be treated with the same care as production code. Keep it clear, modular, and free from unnecessary hardcoded dependencies.
• Focus on meaningful coverage over 100% target metrics. Reaching 100% coverage does not always mean the tests are effective. It is more useful to focus on high-risk areas and complex logic that could cause serious issues.
• Combine manual code reviews with automation. Automated analysis can quickly detect many code-level problems, while peer reviews help assess design choices and overall code quality.
• Integrate testing directly into CI/CD. Automated tests and coverage checks can run with each pull request, helping teams catch issues before changes are merged.
• Continuously refactor and update test suites. As the system changes, tests should be updated as well to keep them reliable and reduce false failures.

Challenges in White Box Testing and Their Mitigation Strategies

White box testing can be highly effective, but it also comes with practical challenges. Most of them can be managed with the right testing approach and a clear process.

Complex Codebases – Use Modular Testing

Large or highly connected codebases can be difficult to test as a whole. Breaking the system into smaller modules makes testing more manageable and helps teams focus on one part of the code at a time.

Frequent Code Changes – Automate Regression Testing

When code changes often, existing functionality can be affected unexpectedly. Automated regression tests help teams check that new updates have not introduced problems into parts of the system that previously worked correctly.

Low Test Coverage – Review Coverage Regularly

Some areas of the code may receive little or no testing, especially as the application grows. Coverage analysis helps identify these gaps so teams can decide which parts of the code need additional attention.

Tight Deadlines – Prioritize Testing by Risk

Limited time can make it difficult to test every part of the code equally. In this situation, teams can focus first on areas where a failure would have the greatest impact, while less critical components receive a lower priority.

Example of White Box Testing

White box testing can be demonstrated with a user login function. Instead of checking only the final result, testers examine how the internal code handles each step of the login process.

User Login Scenario

White box testing can be used to review several parts of the login logic:

• Authorization checks. Tests confirm that only users with the required access can continue.
• Password hashing. The code is checked to make sure passwords are compared securely rather than stored or processed as plain text.
• Error handling. Tests verify that failed login attempts return the expected response without breaking the process.
• Database interaction. The tester checks whether user data is retrieved correctly and database failures are handled properly.
• Exception handling. Unexpected errors should be caught so they do not cause the login function to fail completely.
• Session creation. After a successful login, the application should create a valid session for the user.
• Authentication logic. Different login conditions are tested to confirm that valid users are accepted while invalid attempts are rejected.

Simple Pseudocode Example

function login(username, password):

try:

user = findUser(username)

if user does not exist:

return “Invalid credentials”

if not user.canLogin:

return “Access denied”

if passwordHash(password) != user.passwordHash:

return “Invalid credentials”

createSession(user)

return “Login successful”

catch error:

return “Login error”

Statement Coverage

For statement coverage, the goal is to execute every statement in the function at least once. A combination of successful and unsuccessful login cases can be used to reach all parts of the code.

Branch Coverage

Each condition has more than one possible outcome. Branch coverage makes sure both sides are tested, such as when access is allowed and when it is denied.

Path Coverage

Here, attention shifts to complete routes through the function. One path may end with a successful login, while another may stop because the credentials are invalid or an error occurs.

White Box Testing in Agile and DevOps Frameworks

In Agile and DevOps environments, testing often needs to keep pace with frequent code changes. Automation testing frameworks combined with structural analysis methodologies make continuous verification possible.

• Shift-left quality strategy. Structural testing shifts verification to the earliest possible phase of the SDLC. Finding logic issues during development can make them easier and less costly to fix than discovering them after release.
• CI/CD automation integration. Integrating tools like JUnit, SonarQube, and JaCoCo into GitHub Actions or Jenkins pipelines ensures code commits are automatically validated before merging.
• Continuous quality gates. DevOps teams establish hard quality gates, such as requiring 85% branch coverage and zero high-severity SAST vulnerabilities, to prevent low-quality code from advancing to deployment phases.
• Developer-QA collaboration. Structural methods bridge the gap between software developers and SDETs, enabling collaborative code reviews, optimized test design, and shared accountability for system stability.

Conclusion

White box testing provides insight into areas of software that cannot be evaluated through external behavior alone. By examining internal logic and code structure, teams can identify issues that may be difficult to detect with functional testing.

In practice, white box testing works best alongside black box and grey box approaches. Combining different testing methods gives teams a broader view of software quality and helps identify problems at different levels of the system.

White Test Lab delivers comprehensive, enterprise-level testing services tailored to your technical ecosystem. Contact us today to optimize your software quality strategy!
