Mainframe Testing: Types, Challenges, and Best Practices in Mainframe QA

Mainframes process massive volumes of critical transactions every day across banking, insurance, healthcare, and government. They are the infrastructure no one sees until it fails. A single production defect here triggers regulatory filings, multi-million dollar operational halts, and audit exposure that outlasts the incident by years.

This article covers the architecture, testing types, execution lifecycle, challenges, and best practices that define serious mainframe QA.

Core Industries Anchored to Mainframes

Legacy host systems remain the invisible processing backbone for sectors handling massive transactional volumes and strict compliance guidelines:

• Banking & finance. Mainframes process high volumes of core account activity every day, including wire transfers, card payments, settlements, and credit card clearing.
• Insurance. Mainframes manage large policy administration databases, maintain historical actuarial systems, and support large-scale claims processing.
• Healthcare. Mainframes support critical patient record systems, billing platforms, and high-volume medical insurance payment workflows.
• Government and public sector. Mainframes run tax processing systems, social security databases, public benefits platforms, and census-related data infrastructure.
• Retail and logistics. Mainframes support high-speed inventory records, supply chain tracking systems, and global point-of-sale transaction pipelines.

By systematically eliminating processing exceptions in core batch queues, rigorous testing protects high-throughput systems from costly deadlocks and guarantees long-term reliability.

Furthermore, it also helps validate backend data handling against applicable compliance requirements, such as SOX, HIPAA, or PCI-DSS, depending on the industry and system scope.

What Is Mainframe Testing?

Mainframe testing is the structured validation of applications, batch jobs, and data systems running on host platforms – an environment fundamentally different from stateless web or mobile apps, operating instead through green-screen terminal interfaces, massive batch processing cycles, and deeply coupled transaction middleware. The scope covers functional correctness, integration integrity, performance under load, and access control compliance.

Traditional web and mobile testing focuses on stateless client-side rendering, responsive layouts, and cross-browser visual fidelity. Mainframe testing, by contrast, operates beneath the interface layer, isolating heavy back-end transaction logic, massive data validation within complex batch processing queues, and rigid terminal emulator stability where visual metrics yield to system performance.

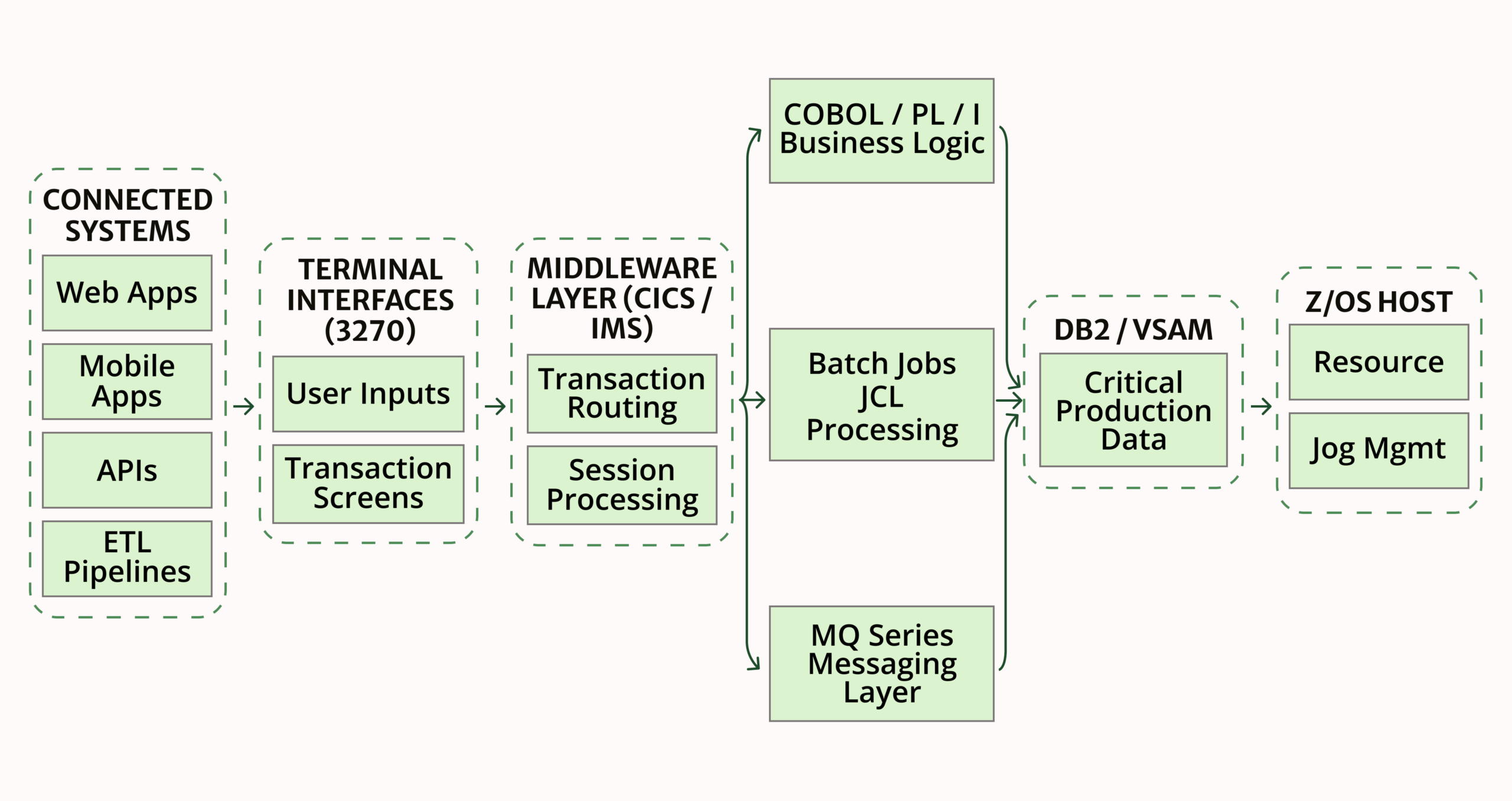

The core architecture under test:

• Host system (z/OS) – the operating platform managing all compute resources and job scheduling
• Batch processing (JCL) – scheduled data transformation and reconciliation jobs executing outside real-time sessions
• Middleware (CICS/IMS) – transaction processing engines routing online user sessions to application programs
• Databases (DB2/VSAM) – relational tables and indexed file systems holding production-critical data.
• Terminal interfaces (3270) – green-screen sessions used to drive and validate online transactions.
• Connected systems – web front-ends, mobile APIs, and ETL pipelines consuming mainframe output

Within the mainframe development lifecycle, QA should act as a structured release gate, combining automated checks with manual validation where needed. Due to the high cost of host computing resource consumption, validation shifts left into early requirements definition and code staging environments to catch processing regressions before expensive compilation cycles.

Quality assurance metrics directly govern the migration of code from developer source modules through rigorous integration testing layers, serving as the final risk clearance before production deployment.

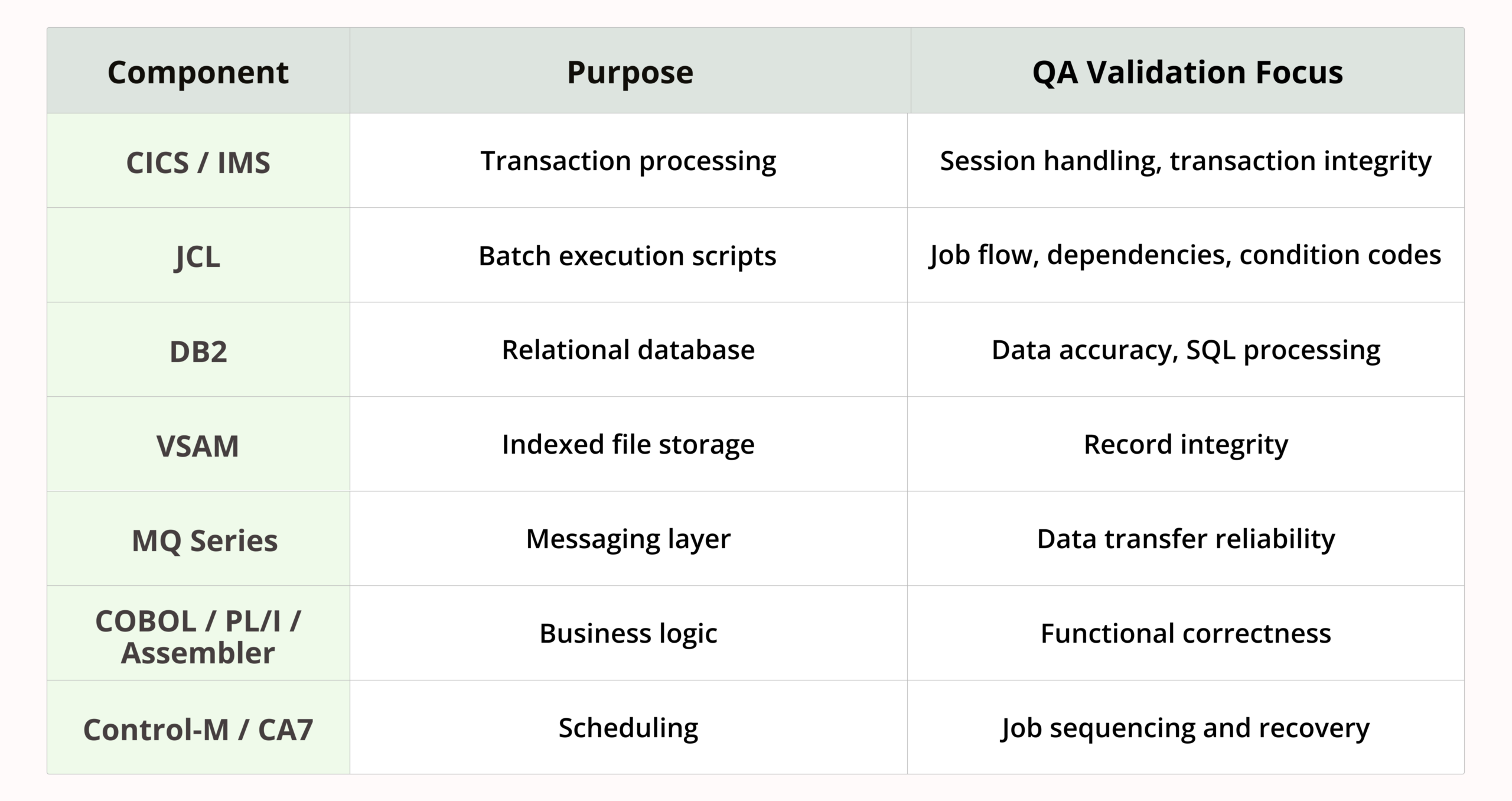

What Are Mainframe Components?

Comprehending mainframe architecture requires a strict separation between light user interface layers and heavy back-end host processing. While modern frontends or legacy 3270 terminal screens merely capture inputs and display text configurations, the actual business logic, resource allocation, and data transformations occur entirely on the central host.

This layout demands that QA teams validate not just front-end input schemas, but how securely and efficiently those terminal interactions translate into complex backend server calculations and database transactions.

The mainframe stack is not monolithic. Mainframe components carry distinct testing requirements and failure modes:

• CICS/IMS – online transaction processing engines managing concurrent user sessions, program routing, and transactional atomicity.
• JCL (Job Control Language) – batch job scripts that define execution parameters, dataset allocations, and step-level dependencies for scheduled data processing.
• DB2/VSAM – DB2 handles relational data with SQL; VSAM manages indexed, entry-sequenced, and relative record file systems used by legacy COBOL programs.
• MQ Series (IBM MQ) – asynchronous messaging layer bridging mainframe applications and distributed systems — the integration seam in hybrid architectures.
• COBOL/PL/I/Assembler – the programming languages encoding decades of business logic; COBOL dominates, with PL/I in older financial systems and Assembler in performance-critical exits.
• Control-M/CA7 – job scheduling engines managing batch dependency chains, execution windows, and failure-handling rules across production job streams.

Common Technologies in Mainframe Environments

Operating effectively within host environments requires deep familiarity with the specialized technology stacks powering enterprise backends. These systems generally split into three distinct layers:

• Legacy programming languages. The underlying business logic rests almost entirely on COBOL, PL/I, and Assembler. Testing these modules requires verifying compilation accuracy, memory allocation, and data type formatting within strict structural parameters.
• Middleware solutions. Systems like CICS (Customer Information Control System) and IMS manage online transaction processing, acting as the bridge between distributed web applications and the mainframe core. QA ensures these interfaces handle concurrent requests without performance degradation.
• Job scheduling mechanisms. Tools such as Control-M and CA7 orchestrate massive batch processing workflows. Automated verification focuses on job execution sequences, condition codes, dependencies, and error handling when jobs fail mid-run.

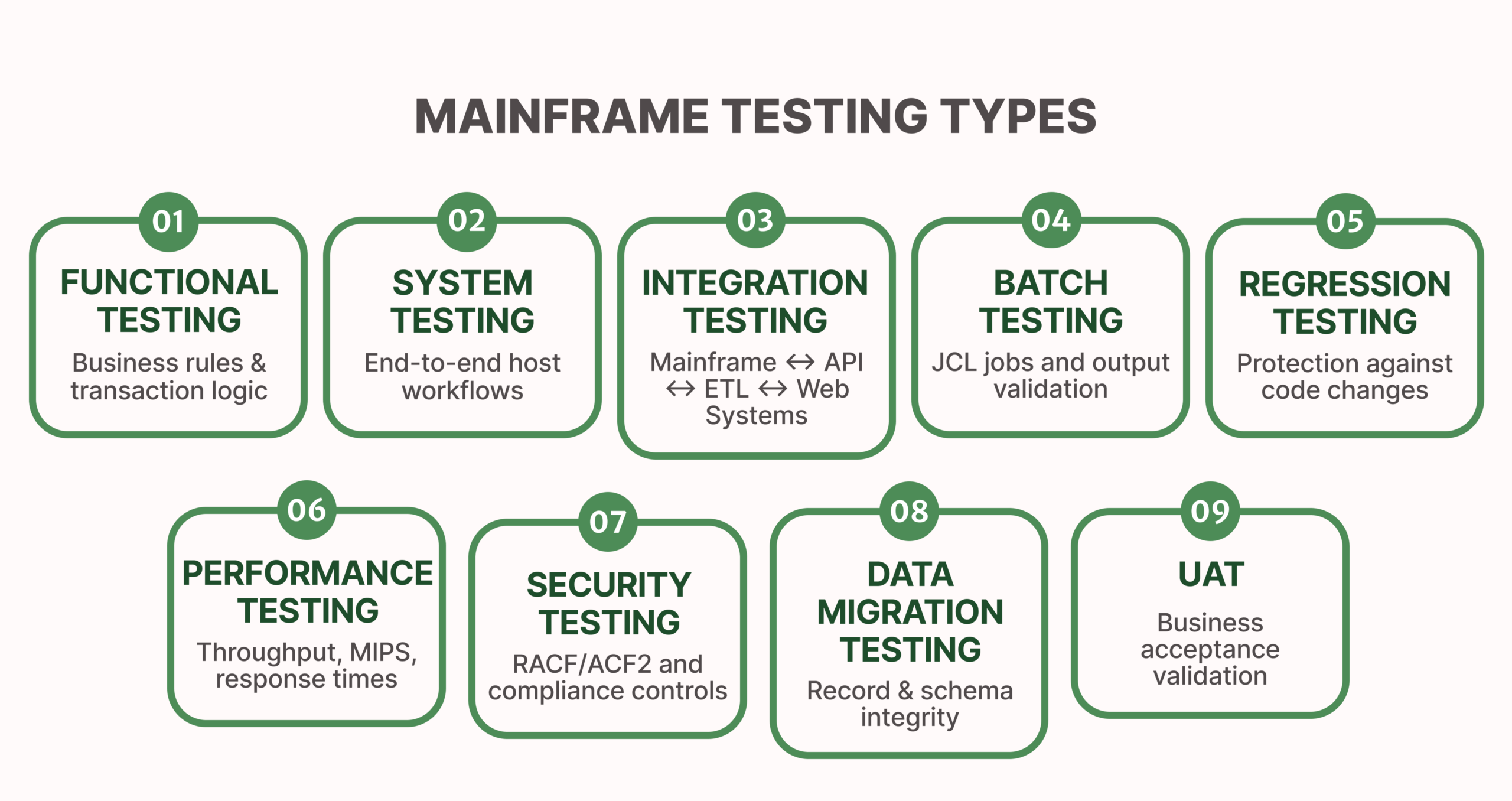

Types of Mainframe Testing

Each discipline targets a distinct failure surface. Risk-based planning determines which types are mandatory per release:

• Functional testing verifies that COBOL programs, CICS transactions, and batch routines execute business rules and produce correct transactional outputs.
• System testing validates end-to-end flows across the fully integrated host environment — from terminal input through middleware, application logic, and database writes.
• Integration testing confirms correct data mapping and protocol handling between mainframe applications and modern API, web, or ETL tiers.
• Batch testing validates scheduled JCL runs for output dataset accuracy, abend-and-restart handling, and completion within defined execution windows against heavy data volumes.
• Regression testing protects stable core logic from unintended side effects introduced by OS upgrades, compiler patches, or application code changes.
• Performance and load testing measures CICS response times, MIPS consumption, batch throughput, and I/O contention under peak concurrent load.
• Security testing validates RACF/ACF2 access control configurations, dataset authority levels, audit logging, and separation-of-duties enforcement for regulatory compliance.
• Data migration testing verifies record-level integrity, field-value accuracy, and referential constraint preservation when testing mainframe data during platform modernization or schema changes.
• User acceptance testing (UAT) – business unit validation of transaction flows and operational behavior against defined acceptance criteria before production deployment.

Ultimately, successful mainframe verification requires combining these distinct testing disciplines into a single, cohesive QA strategy.

Balancing rapid functional checks and automated regression suites with heavy batch and performance validation ensures that every layer of the host environment, from core transaction processing to external API integrations, remains secure, compliant, and structurally resilient under enterprise workloads.

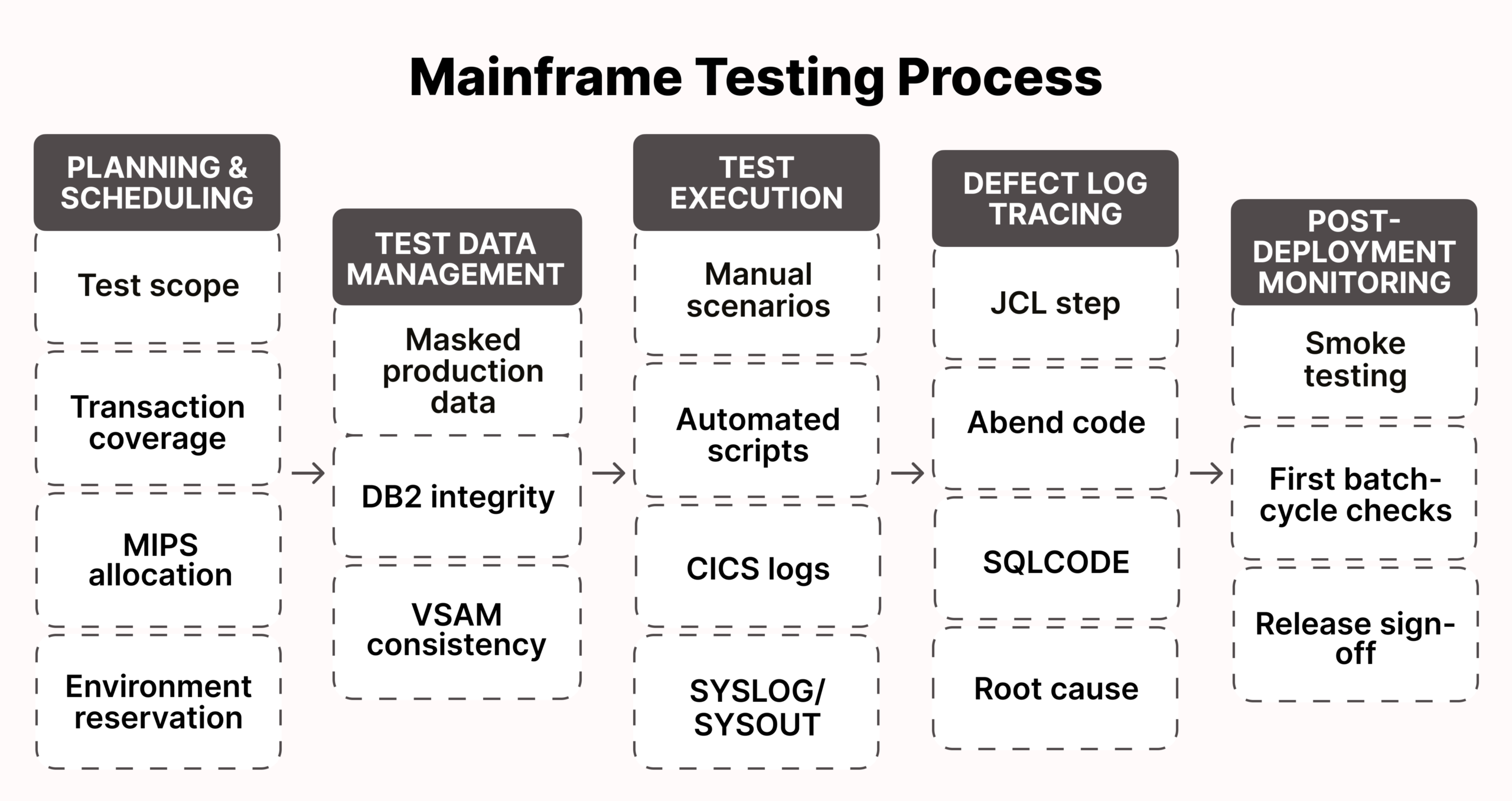

How to Do Mainframe Testing

The mainframe testing process runs five structured phases. Skipping or compressing any phase directly increases defect leakage risk:

• Planning and scheduling. Define test scope, map business transaction coverage, secure MIPS budget, and reserve environment availability windows before any execution begins.
• Test data management. Inject production-like masked data into isolated environments, preserving DB2 referential integrity and VSAM structural consistency, to ensure test results reflect real operational conditions.
• Test execution. Run manual testing scenarios for exploratory and UAT validation alongside automated test scripts for regression and batch runs, capturing CICS logs, SYSLOG, SYSOUT, and DB2 diagnostics throughout.
• Defect log tracing. Log failures with precise technical context – JCL job name and step, CICS abend code, DB2 SQLCODE, and the specific data condition that triggered the issue – to eliminate ambiguity in remediation.
• Post-deployment monitoring. Execute smoke tests against production, monitor system logs through the first batch cycle, and formally sign off once post-release stability is confirmed.

Following this structured lifecycle ensures that mainframe validation moves predictably from initial resource allocation through rigorous execution to final post-deployment monitoring. By enforcing distinct gates at every phase, engineering teams can trace defects directly to specific code blocks, accurately manage environment constraints, and protect live enterprise networks from processing anomalies.

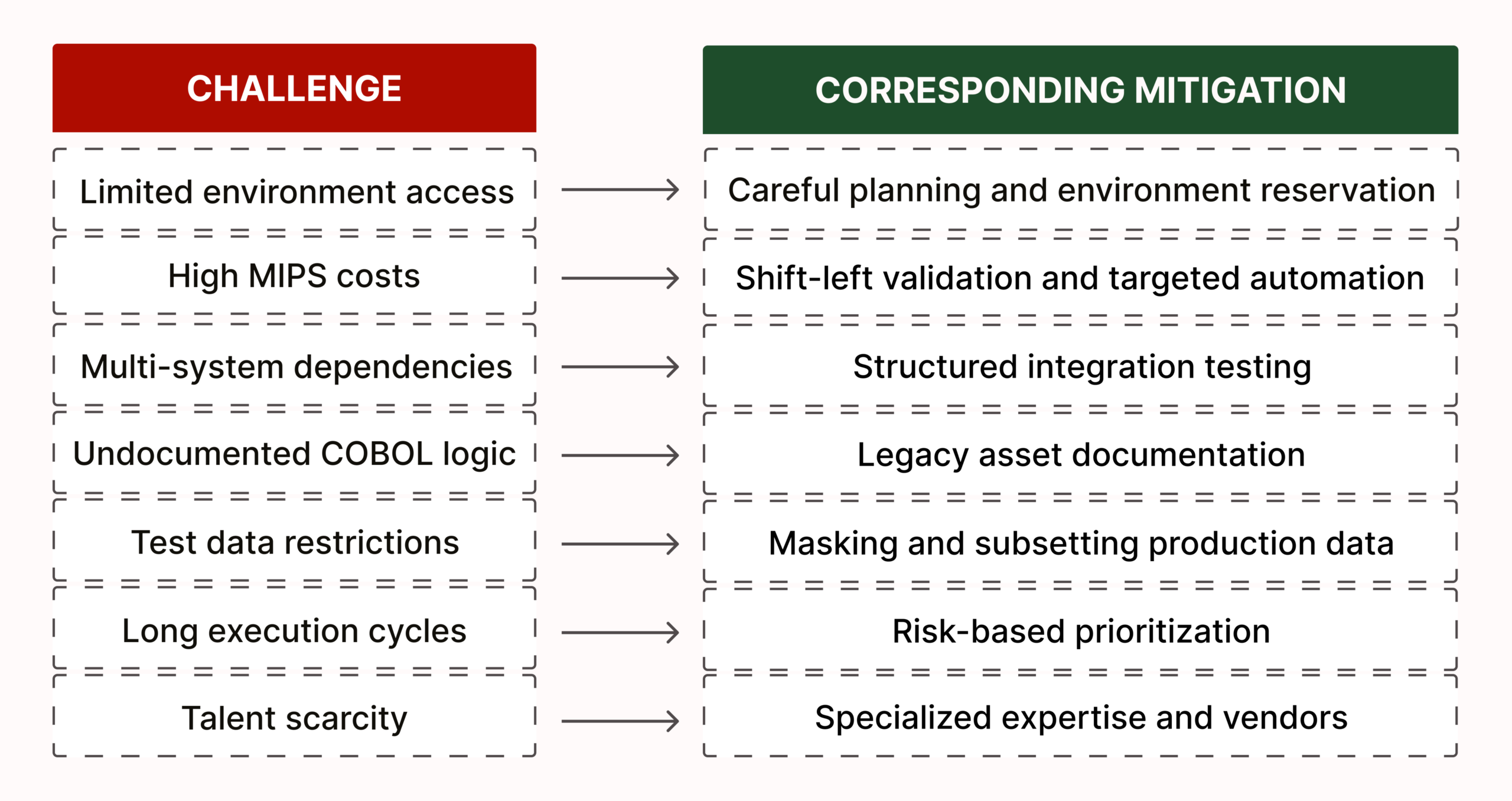

The Key Challenges in Mainframe Testing

These are structural constraints, and they require explicit mitigation strategies:

• Limited environment access. Test environments are shared, MIPS consumption is a hard cost, and availability windows compress execution time on every project.
• Complex multi-system dependencies. A single transaction can span CICS, multiple COBOL programs, DB2, VSAM, MQ, and a downstream API, accurately replicating that dependency graph in a test environment is non-trivial.
• Undocumented legacy code. COBOL programs modified over decades by engineers who are no longer available carry implicit business logic that is not captured in any specification document.
• Test data management overhead. Production data contains PII and regulated financial records that cannot be used directly; masking and subsetting EBCDIC-encoded VSAM files and DB2 tables while preserving structural integrity requires specialized tooling.
• Long execution cycles. Full regression plus end-to-end batch validation against representative data volumes can run for days, creating direct conflict with release cadence expectations.
• Talent scarcity. The COBOL and z/OS engineering workforce is aging out with no equivalent replacement pipeline, making it increasingly difficult to staff teams who can read a JES2 SYSOUT or interpret a CICS abend dump.

Mainframe Software Testing Best Practices

Predictable quality in mainframe software testing depends on discipline. These practices separate stable programs from reactive ones:

• Shift-left on legacy pipelines. Introduce COBOL unit testing and JCL review checkpoints early in the development cycle, before code reaches the integration environment.
• Establish stable test beds. Maintain controlled, versioned environment configurations with production-representative data – environment drift is one of the leading sources of false test failures.
• Risk-based test prioritization. Map test coverage intensity to business impact and change frequency; payment processing and claims adjudication logic warrant deeper coverage than administrative batch utilities.
• Responsible test data management. High-fidelity masked data, with DB2 foreign key relationships and VSAM record structures intact, produces significantly more reliable QA outcomes than synthetic data sets.
• Document legacy assets. Capturing CICS transaction maps, COBOL program interfaces, and JCL dependency chains builds an institutional knowledge base that reduces impact assessment time on every subsequent release.

Mainframe Test Automation: Opportunities and Limitations

Automation delivers strong ROI in well-defined, high-frequency scenarios, but the mainframe environment imposes real limits that distinguish it from modern web QA. Approaching mainframe automation testing with uncalibrated expectations is one of the fastest ways to waste budget. Here’s what to automate and what to keep manual.

Automate:

• Regression suites for stable CICS transaction paths using 3270 terminal automation frameworks
• API-layer testing where mainframe services are exposed through REST or SOAP interfaces
• Predictable JCL batch runs – execution, output dataset validation, and record count reconciliation

Keep manual:

• Exploratory validation of legacy COBOL behavior in underdocumented edge cases
• Ad-hoc defect investigation requiring interactive system navigation
• UAT sessions driven by business unit stakeholders

For CI/CD integration, automated mainframe test suites can be triggered as pipeline stages in Jenkins or GitLab CI, with results reported back in standard formats, connecting the mainframe testing tool chain into shift-left workflows without requiring a full DevOps transformation.

Balancing automation ROI requires factoring in the high cost of mainframe computing resources, as every automated script execution consumes expensive host MIPS (Million Instructions Per Second). True cost efficiency is achieved by ruthlessly automating stable, high-volume regression blocks and complex batch queues, while leaving highly dynamic, one-off edge cases to manual testing to prevent maintenance debt from draining the enterprise engineering budget.

Key Metrics to Assess the Success of Mainframe Testing

Track these metrics to distinguish a QA program that is improving quality from one that is producing activity reports:

• Defect detection rate (DDR) – percentage of total defects caught before production
• Test coverage density – proportion of transaction paths and batch job steps exercised by executed test cases
• Defect leakage – production incidents traceable to test-phase escapes, the sharpest indicator of coverage gaps
• Execution cycle time – elapsed time from execution start to sign-off; tracks efficiency improvement from automation investment
• Environment availability window – percentage of planned execution time where the environment was stable; low rates must be escalated to infrastructure management as a measured risk.

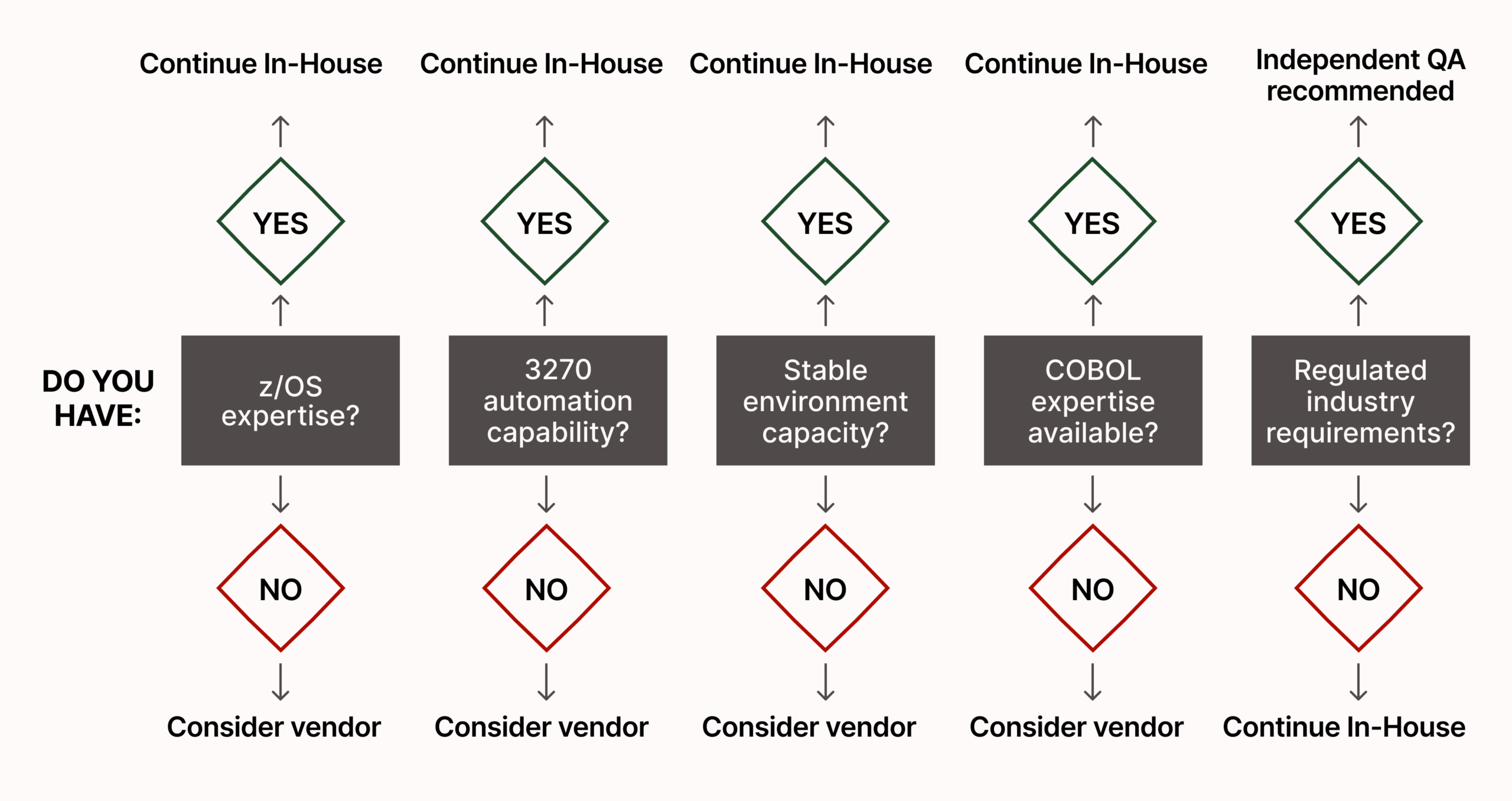

When to Engage a Specialized Vendor

If your team lacks z/OS tooling expertise, cannot configure a 3270 automation framework, is running compressed cycles due to environment bottlenecks, or is losing COBOL domain knowledge to retirement, these are signals that in-house capacity has reached its limit.

For regulated industries, an independent QA assessment also carries direct weight in audit contexts.

White Test Lab brings pre-built test frameworks, environment-ready infrastructure, and domain expertise that shortens ramp time from engagement start to productive execution from months to weeks.

Securing the Core: The Strategic Value of Mainframe QA

Mainframe software testing must be viewed not as a legacy operational cost, but as a critical strategic risk-mitigation initiative that directly shields an enterprise’s core revenue channels. In an environment where a single batch cycle exception can compromise millions of transactions and trigger regulatory penalties, robust quality assurance functions as the ultimate safeguard for operational continuity.

Maintaining such deeply integrated, high-throughput infrastructure demands highly specialized verification frameworks and deep architectural familiarity that standard, out-of-the-box QA methods simply cannot provide.

If your internal engineering teams are facing test coverage backlogs, rising environment costs, or a lack of specialized mainframe automation tools, a targeted partnership is the most direct path to securing platform stability.

White Test Lab delivers the precise domain knowledge, technical frameworks, and execution processes required to streamline your testing cycles without risking production downtime.

Contact our team today to book a technical consultation or schedule a comprehensive quality assurance audit. Let’s establish a predictable,lower-risk release pipeline for your core enterprise applications!
