Traceability Matrix in Software Testing (with Examples)

Misaligned requirements and gaps in test coverage can contribute to defects being discovered later in development. When teams lose track of the links between requirements and testing activities, it becomes harder to control scope and identify coverage gaps.

Requirements management addresses this gap by creating explicit relationships between every functional specification and its corresponding verification scenarios. A traceability matrix (TM) gives teams a clearer view of how requirements connect to testing throughout the development lifecycle.

What Is a Traceability Matrix in Software Testing?

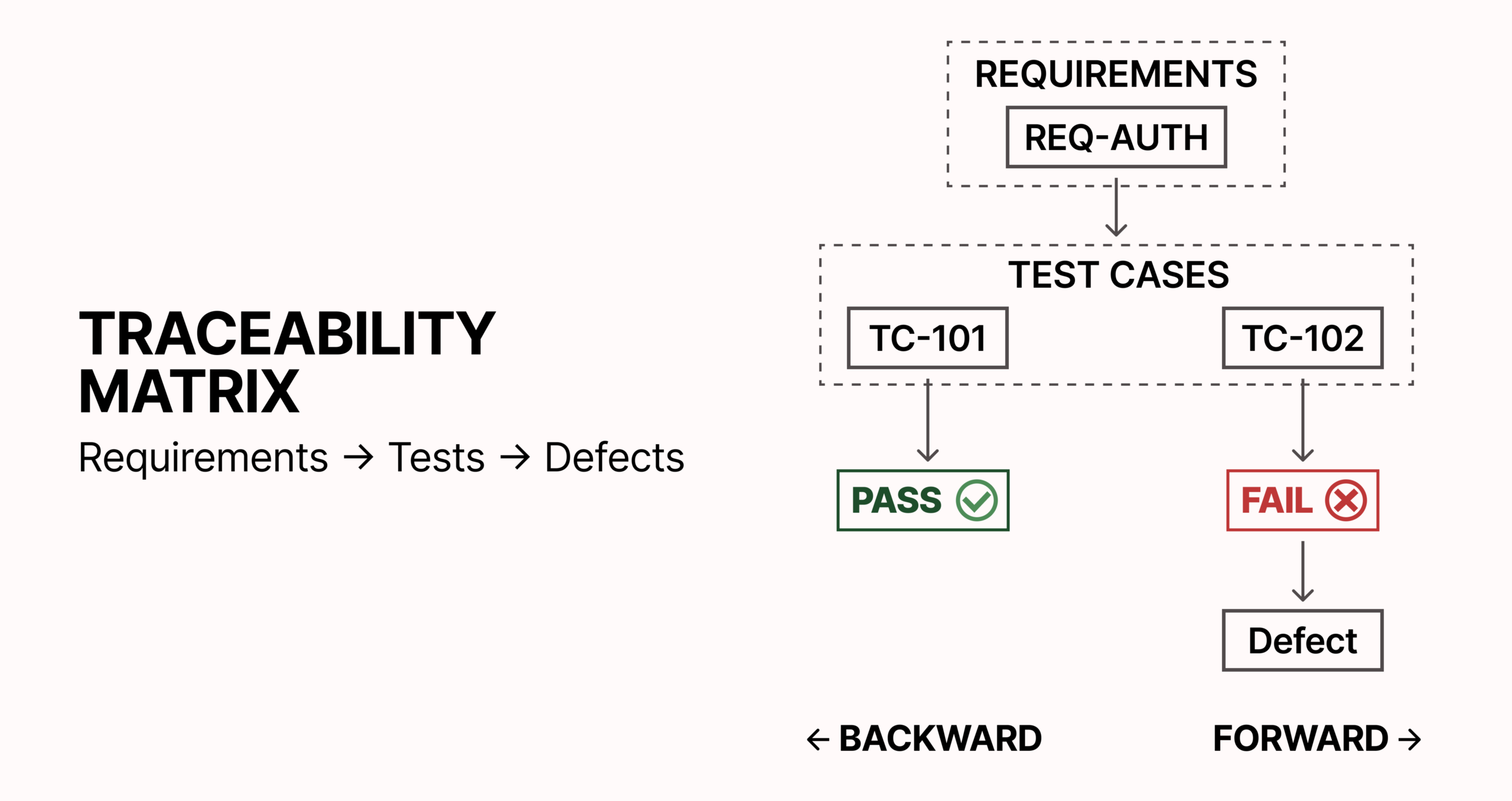

A traceability matrix, often called a requirements traceability matrix (RTM), is a structured document or database mapping that links business requirements to their corresponding technical specifications, test scripts, and defect records.

In enterprise QA, an RTM can serve as a central reference for tracking requirement coverage. It helps teams check whether each requirement is linked to relevant test scenarios before release.

Traceability relies on bidirectional verification, the structural capability to trace relationships both forward and backward through the software lifecycle:

• Forward traceability (requirements ➔ test cases). Traces business specifications down to corresponding test execution scripts, verifying that every feature requirement is actively tested.
• Backward traceability (test cases ➔ requirements). Traces individual test cases, code changes, or defects back to the originating requirement, preventing scope creep and unmapped feature additions.

Core Advantages of an RTM

Implementing a structured traceability matrix in software testing delivers distinct engineering and operational advantages:

• Improves requirement coverage. An RTM helps teams check that each requirement is connected to at least one relevant test case.
• Supports impact analysis. When a requirement changes, the matrix makes it easier to see which tests may also need to be updated.
• Simplifies defect triage. Failed tests and reported defects can be linked back to the affected requirement, helping teams understand the impact more clearly.
• Supports regulatory audits. The matrix can provide documented evidence that required functionality has been tested for compliance purposes.
• Makes regression testing more focused. Teams can identify which existing tests are affected by a change instead of rerunning a much broader set unnecessarily.

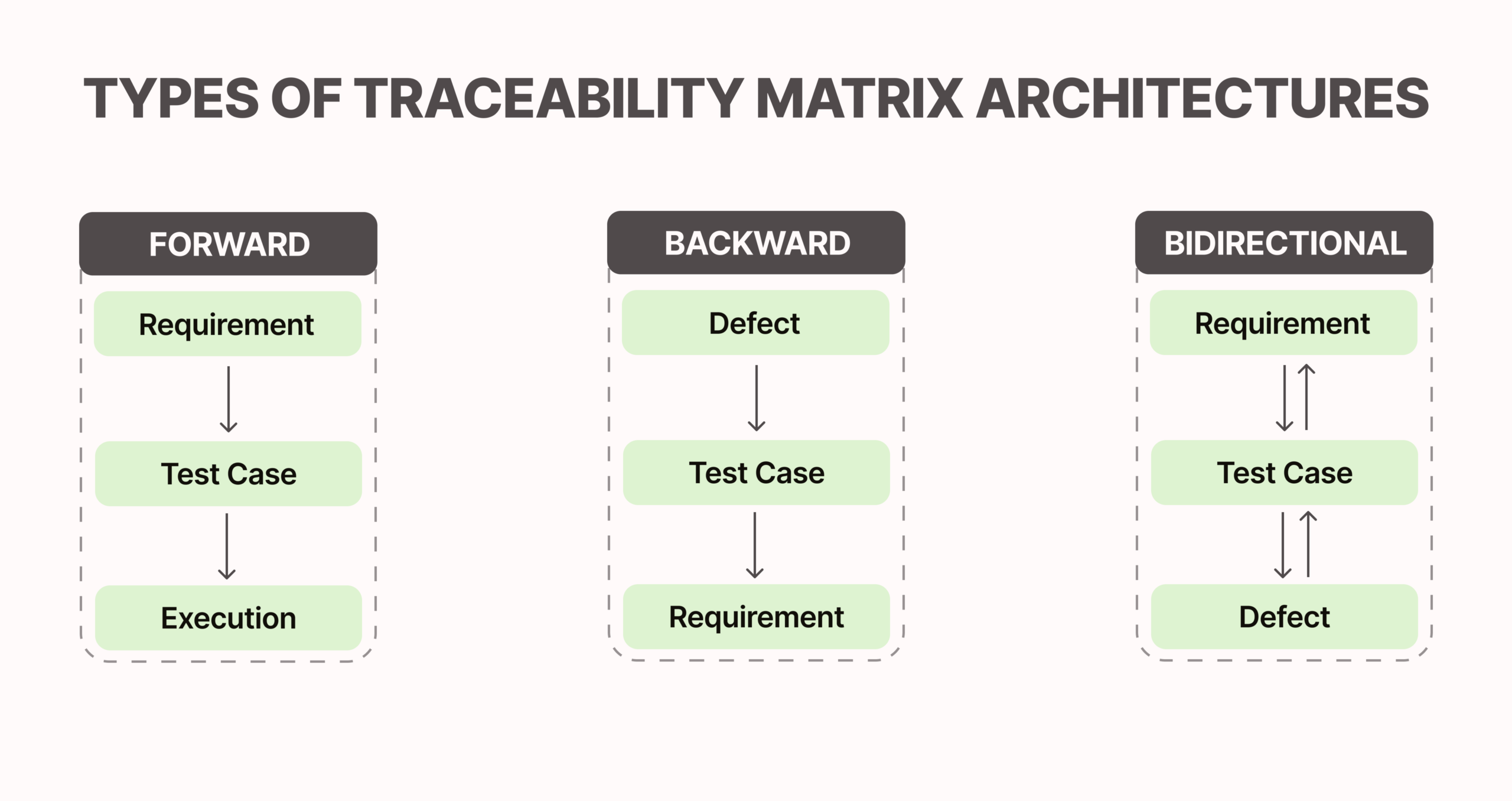

Types of Traceability Matrix Architectures

Engineering teams select specific traceability matrix types based on project delivery requirements and risk management goals.

Forward Traceability

Forward traceability connects requirements to the test cases created for them. It helps teams check that planned functionality is covered during testing and that important requirements are not missed.

Backward (Reverse) Traceability

This approach links test cases or defects back to the original requirements. It helps confirm that development work stays connected to approved specifications and reduces the risk of unnecessary scope changes.

Bidirectional Traceability

Bidirectional traceability combines both directions in one matrix. Teams can follow requirements through to testing and also trace test activities back to the business need they support.

Key Structural Components of an RTM

A production-grade software testing traceability matrix usually includes a set of fields that help teams track requirements and related testing information:

How to Build and Maintain a Traceability Matrix

A clear process can make a traceability matrix easier to build and maintain:

1. Gather requirements. Start with the approved requirements from product documents and user stories so the matrix reflects the actual project scope.
2. Assign unique IDs. Each requirement needs a clear identifier, such as REQ-SYS-01, which makes it easier to reference later.
3. Design test cases. Next, create tests that show how the requirement will be checked and what outcome should be expected.
4. Map relationships. Requirement IDs are then connected to the relevant test cases, making the coverage visible in one place.
5. Execute tests and log defects. During testing, any discovered issue should remain linked to the requirement it affects. This makes later analysis easier.
6. Maintain dynamically. Requirements may change as the project develops, so the matrix should be adjusted whenever the scope or related test cases change.

Practical Example of a Traceability Matrix

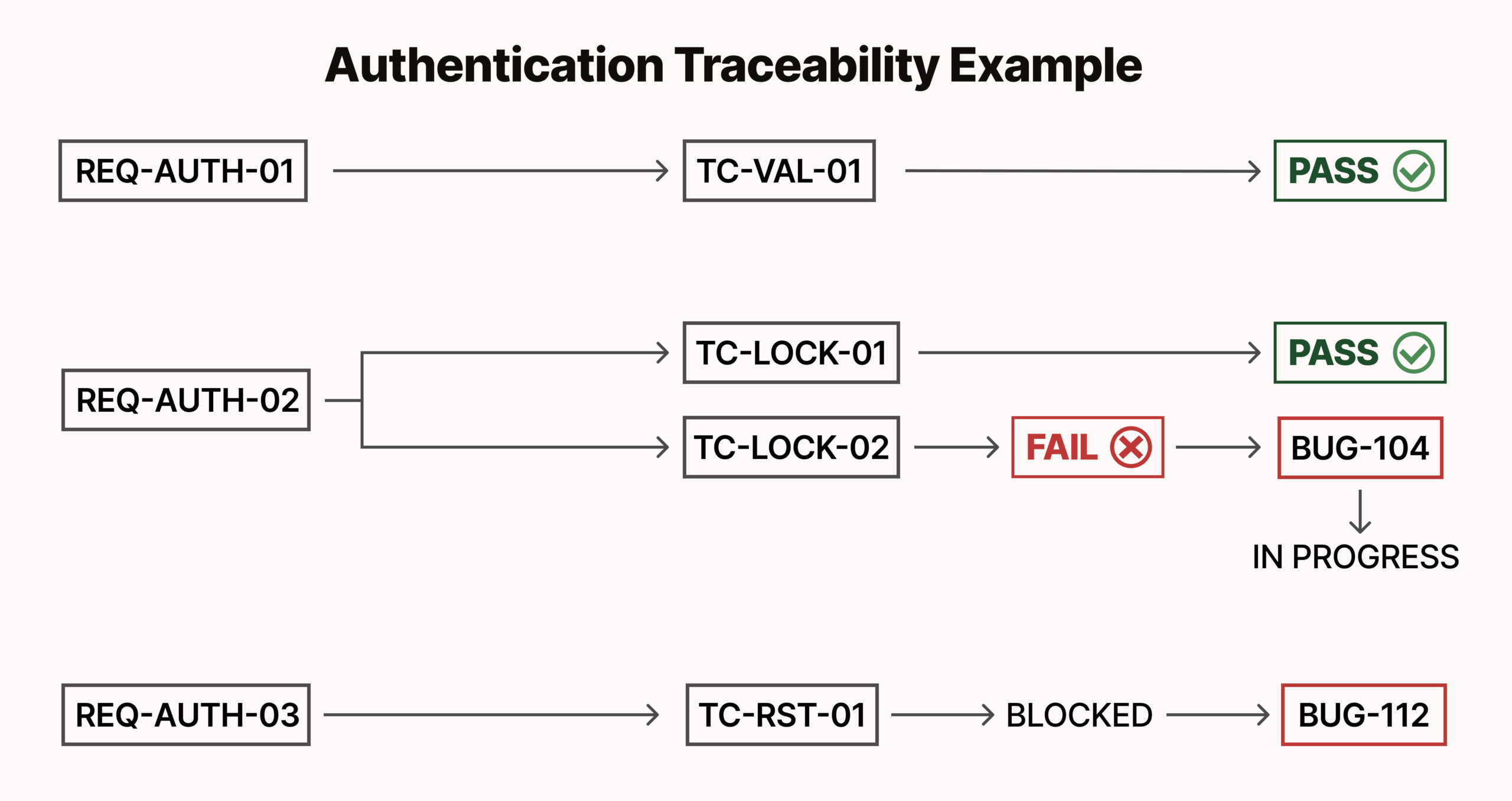

Below is a simplified example of an RTM in testing illustrating how an authentication system maps requirements to test scripts, execution states, and underlying defects:

In this matrix, REQ-AUTH-02 maps to two distinct test scenarios. The failure of TC-LOCK-02 generated BUG-104, allowing QA leads and developers to immediately see that account locking functionality is currently unstable.

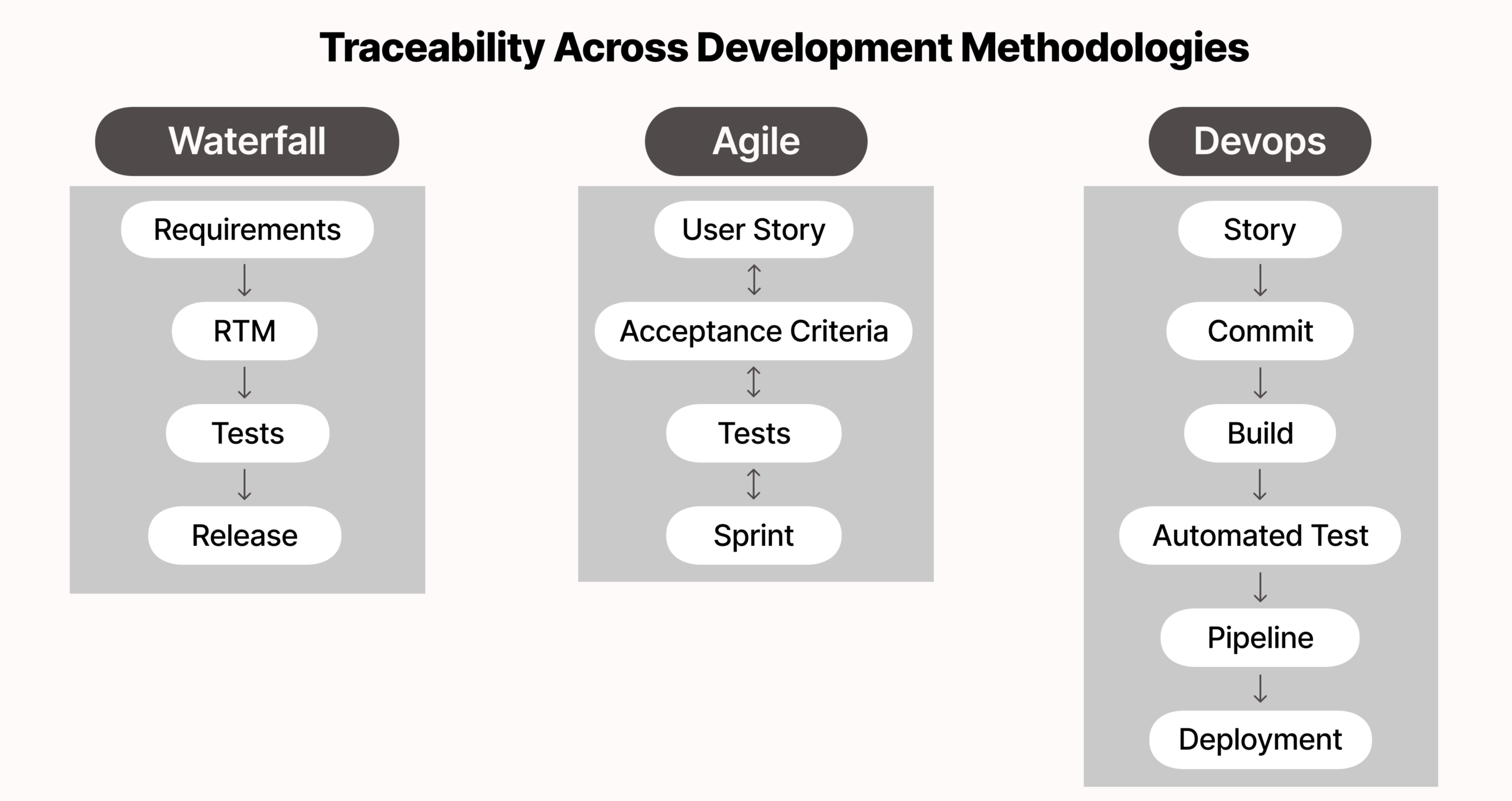

Managing Traceability Across Agile, Waterfall, and DevOps

Traceability practices adapt to the delivery methodology used by the organization:

• Waterfall methodology. Traceability is usually documented in a formal RTM before testing begins, with requirements mapped to planned test scenarios.
• Agile frameworks. In Agile projects, these links are often maintained directly in tools such as Jira, where user stories can connect to acceptance criteria and test results.
• DevOps pipelines. Traceability becomes part of the CI/CD process, allowing test outcomes to be linked to story IDs and updated as new builds are created.

Engineering Best Practices for Traceability Management

These practices can help keep the matrix useful without making it difficult to maintain:

• Establish traceability early. Set up the links between requirements and tests during planning, rather than trying to recreate them after testing is already underway.
• Enforce standardized naming conventions. Clear ID formats such as REQ, TC, and BUG make related items easier to find and connect across the project.
• Automate matrix maintenance. Tools such as Xray or Zephyr can reduce the amount of manual updating and help keep traceability information current.
• Focus on high-risk paths. Not every part of the system needs the same level of detail, so deeper mapping can be reserved for critical services or security-related areas.

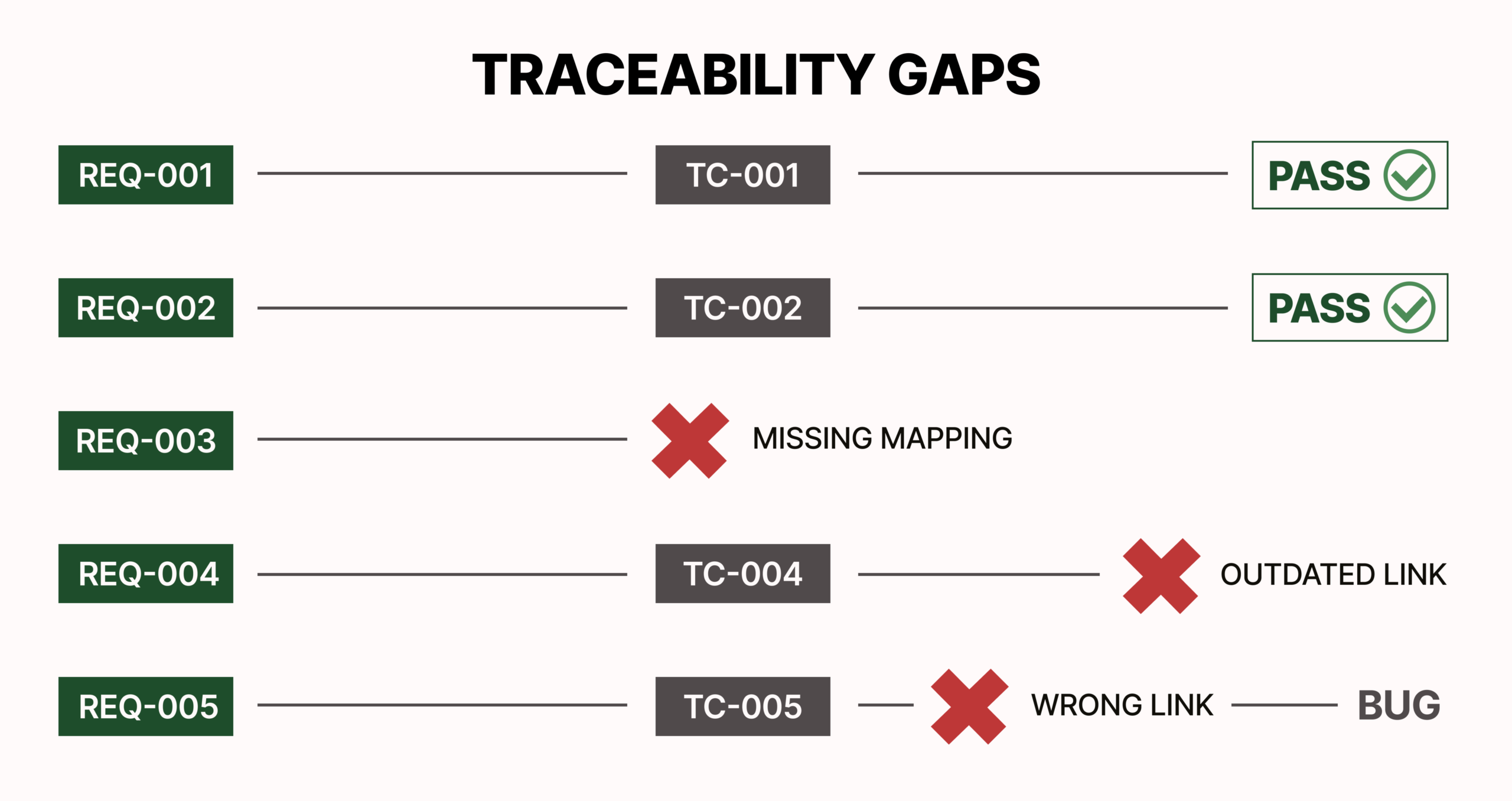

Common Pitfalls to Avoid

A traceability matrix is only useful when it stays clear and up to date. Common mistakes include:

• Missing requirement mappings. Some requirements may remain disconnected from test cases, making coverage harder to assess.
• Outdated matrices. If the RTM is not updated as the project changes, it can quickly lose its value.
• Inconsistent naming rules. Different ID formats can make related requirements and tests difficult to track.
• Manual maintenance errors. Updating links by hand increases the chance of missed changes or incorrect mappings.
• Ignoring requirement changes. When a requirement is revised, the related test cases should be reviewed as well.
• Tracking too much or too little information. An overly detailed matrix becomes difficult to maintain, while a very limited one may not provide enough context.

Modern Enterprise Tools for Traceability Matrix Execution

While small projects can rely on basic spreadsheets, enterprise platforms use integrated tooling:

• Atlassian Jira. Standard platform for tracking user stories and linking sub-tasks, commits, and releases.
• Xray/Zephyr. Native Jira plugins that embed full test management, coverage dashboards, and real-time RTM reports inside epic tickets.
• Azure DevOps (ADO). Provides native end-to-end traceability linking work items directly to pull requests, test suites, and deployment pipelines.
• TestRail. Comprehensive standalone test management system offering dedicated coverage reporting and integration with popular issue trackers.

RTM vs. Test Case Management Systems

While both concepts are core to quality assurance, their scopes serve distinct purpose layers:

Conclusion

Clear requirement tracking can help teams maintain consistency throughout software development. A well-structured requirements traceability matrix can reduce gaps in test coverage and make requirement changes easier to assess.

Whether managed through automated DevOps plugins or structured enterprise frameworks, keeping requirement mappings up to date can help teams check that each release remains aligned with its intended business requirements.
