Playwright E2E Test Automation: Setup, Structure, and Advanced Features

Modern quality assurance (QA) teams utilize Playwright end to end testing for fast, reliable, and scalable automation. Developed by Microsoft, this tool provides an advanced framework that suits checking complex web applications and implementing it into continuous integration and continuous delivery (CI/CD) pipelines. Playwright is the best choice for E2E automation as it automates Chromium, Firefox, and WebKit within a single API.

This solution stands out for many reasons. If compared to Selenium, which requires manual waiting and additional synchronization logic, Playwright has automatic waiting for events, elements, and states. When contrasted with Cypress, the instrument supports multiple browsers, enables parallel execution, and offers greater flexibility.

Thus, teams that operate in fast-paced environments where reliability, speed, and cross-browser coverage are critical should opt for Playwright E2E testing. It gives QA experts multiple opportunities for scaling, delivering future-proof solutions, and integrating with modern workflows.

Why Choose Playwright for End-to-End Automation

Many legacy tools fail to provide developers and testers with stability, productivity, and cross-platform coverage simultaneously. But this is not applied to Playwright. Its strengths go way beyond just high-quality testing procedures and include:

• Cross-browser support (Chromium, Firefox, WebKit). With Playwright, you receive unified automation across all major engines without the need to set up additional configurations or APIs.
• Built-in test runner with Jest/Mocha compatibility. QA specialists can use the tool’s native test runner for writing tests. Those who previously worked with Jest or Mocha will find the syntax and settings familiar.
• Automatic waiting for elements and robust test reliability. The solution waits automatically for elements, events, and navigation. This reduces flakiness, eliminates manual wait logic, and stabilizes large test suites.
• Parallel execution and built-in retries. Tests can run simultaneously on different workers, significantly reducing the execution time. And automatic retries prevent receiving false negatives and positively influence CI pipeline stability.
• Strong developer experience (TypeScript and VS Code support). Playwright has TypeScript typing, intelligent autocompletion, browser inspector, and debugging tools, making it a superior choice for a productive developer experience.

Prerequisites and System Requirements

Before setting up Playwright automation, teams should ensure their environment meets the needed system requirements. The first prerequisite is installing a compatible Node.js version: Node 16 or higher. To manage configurations and dependencies, specialists also need a package manager such as npm, Yarn, or pnpm.

The scalability and cleanliness of the setup depend on the folder structure. Stick to this standard layout: mark /tests for test files, /pages for Page Object data, /fixtures for reusable data, and /config for configuration files. With clear naming and structuring, the tests become readable and easy to maintain.

To boost the development experience, you can also use more tools and extensions. With the Playwright extension for VS Code, you will be able to record tests, debug, and explore sectors visually. For top-notch test quality, look at integrating a linter (ESLint) and a formatter (Prettier).

Creating a Playwright Project from Scratch

Playwright has built-in scaffolding tools, making it straightforward for testers to set up configurations. This workflow allows teams to automate processes for end-to-end testing in modern CI/CD environments.

Project Initialization

The fastest way to start using the Playwright E2E testing framework is by typing the official initializer: “npm init playwright@latest”. With this command, you generate a ready-to-use structure with sample tests, configuration files, folder organization, and TypeScript support. It also installs all needed dependencies, such as the test runner.

The instrument installs all supported browsers, Chromium, Firefox, and WebKit, to start test execution across the environments. And thus, QA teams don’t need to do this manually.

Configuring the Playwright Test Runner

The main Playwright project file is playwright.config.ts, within which you define important testing parameters:

• Base URL for consistent navigation.
• Browser settings: headless mode, sloMo delays, and viewpoint size.
• Retries and timeouts to improve reliability.
• Projects that enable cross-browser check with one configuration.

By setting up correct configurations, the tool will provide you with a robust and easily maintainable foundation for testing and automation.

Building a Scalable Playwright E2E Framework

To get long-term maintenance, parallel development, and smooth onboarding, you need to create a scalable Playwright E2E automation. Use the following recommended approach to structure tests in a clean, modular, and highly maintainable way.

Recommended Folder Structure

Use this folder hierarchy to keep the system easy to navigate:

• /tests: it serves as a storage for test suites. Each file relates to a specific feature or user flow.
• /pages: it refers to Page Object Model (POM) classes that abstract locators and actions.
• /fixtures: this one locates reusable test fixtures such as authenticated states, browser contexts, or API mocks.
• /utils: this folder stores helper functions, reusable utilities, and custom assertions.
• /config: place environment files, specific settings, and global configuration under this file.

With this structure, you can reduce code duplication and aim for easy scalability.

Implementing the Page Object Model (POM)

The POM design pattern improves readability by separating user interface (UI) interactions from test logic. Thus, each page class identifies locators, common actions, and reusable interaction flows. Within a typical page, you can find private locators, a constructor, and clearly named methods.

The best practices include:

• Making locators simple and stable.
• Group actions by a certain logic.
• Not including business logic inside page classes.
• When navigation occurs, return the next page object.

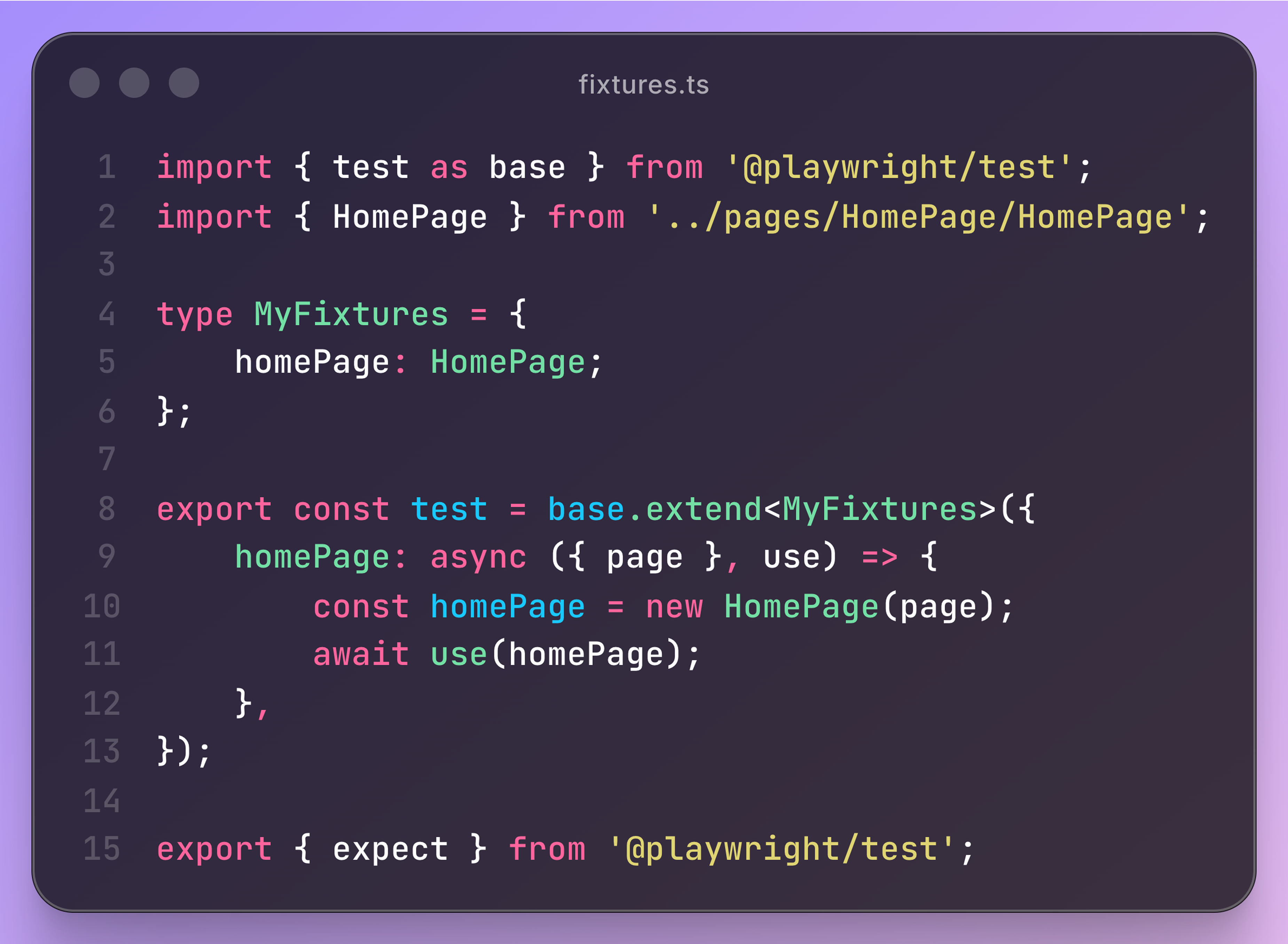

Fixtures and Reusable Components

Fixtures are essential to create a reliable and isolated testing environment. Here are some common examples:

• Reusable browser contexts and API stubs.
• Global setup for seeding test data.
• Other custom setups.

In E2E, Playwright Test has built-in features like page, browser, and context, which can be used and experimented with for creating powerful building blocks.

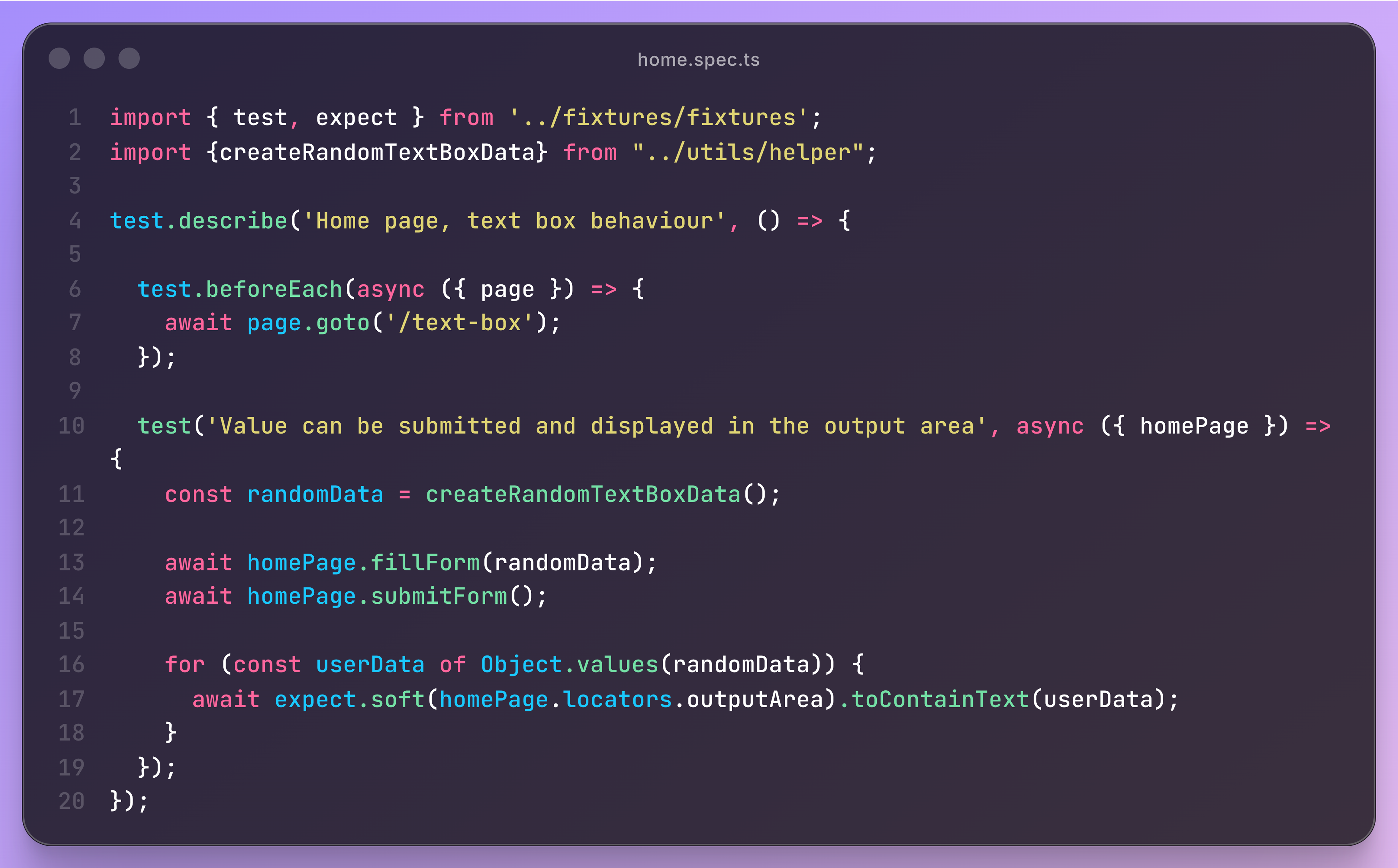

Writing Your First E2E Playwright Test

Setting up Playwright E2E tests typically involves such actions as opening a page, interacting with UI elements, verifying results, and handling navigation. Here is a simple example structure:

• Go to the target URL.
• Find elements such as inputs and buttons.
• Perform actions.
• Wait and evaluate the outputs.

Playwright offers a rich set of functionality for this workflow, allowing you to use assertions to verify behavior, locators to target specific elements, and test hooks to confirm setup or cleanup. The tool handles automatic waiting for the responses, reducing extra delays.

When it comes to debugging, Playwright offers features such as the Inspector, which visually highlights actions and locators, and the Trace Viewer, which records every step and change during the test.

Advanced Playwright Features for Robust Automation

Playwright offers a wide range of advanced functionality that improves test stability, increases debugging clarity, and contributes to better velocity. Mastering the features listed below enables developers to build scalable and effective products.

Trace Viewer and Video Screen Recording

Tracing helps to diagnose failures in CI environments, where bug replication is practically impossible. Trace captures every action, including the console messages, DOM snapshots, network requests, etc. In this case, nothing remains hidden from the tester’s sight, enabling more effective test analyses.

Tracing on Playwright can be enabled in several key settings: trace: “on-first-retry” captures everything only during test retries. Video: “on” allows the team to record an entire session, and screenshot: “only-on-failure” stores screenshots when receiving failures.

Network Interception and Simulation

Another essential feature is the interception and mocking of network requests with the page. route (). This function can become extremely helpful, especially in scenarios when your API is in early stages or isn’t as stable.

In addition to interception, we also have offline and negative testing, which allow us to simulate the edge cases. To initiate the process, you have to set the browser context.setOffline(true), simulate slow timeouts, and return custom HTTP codes (404, 500, etc.) With that, you will be able to highlight the program’s behavior in unexpected situations.

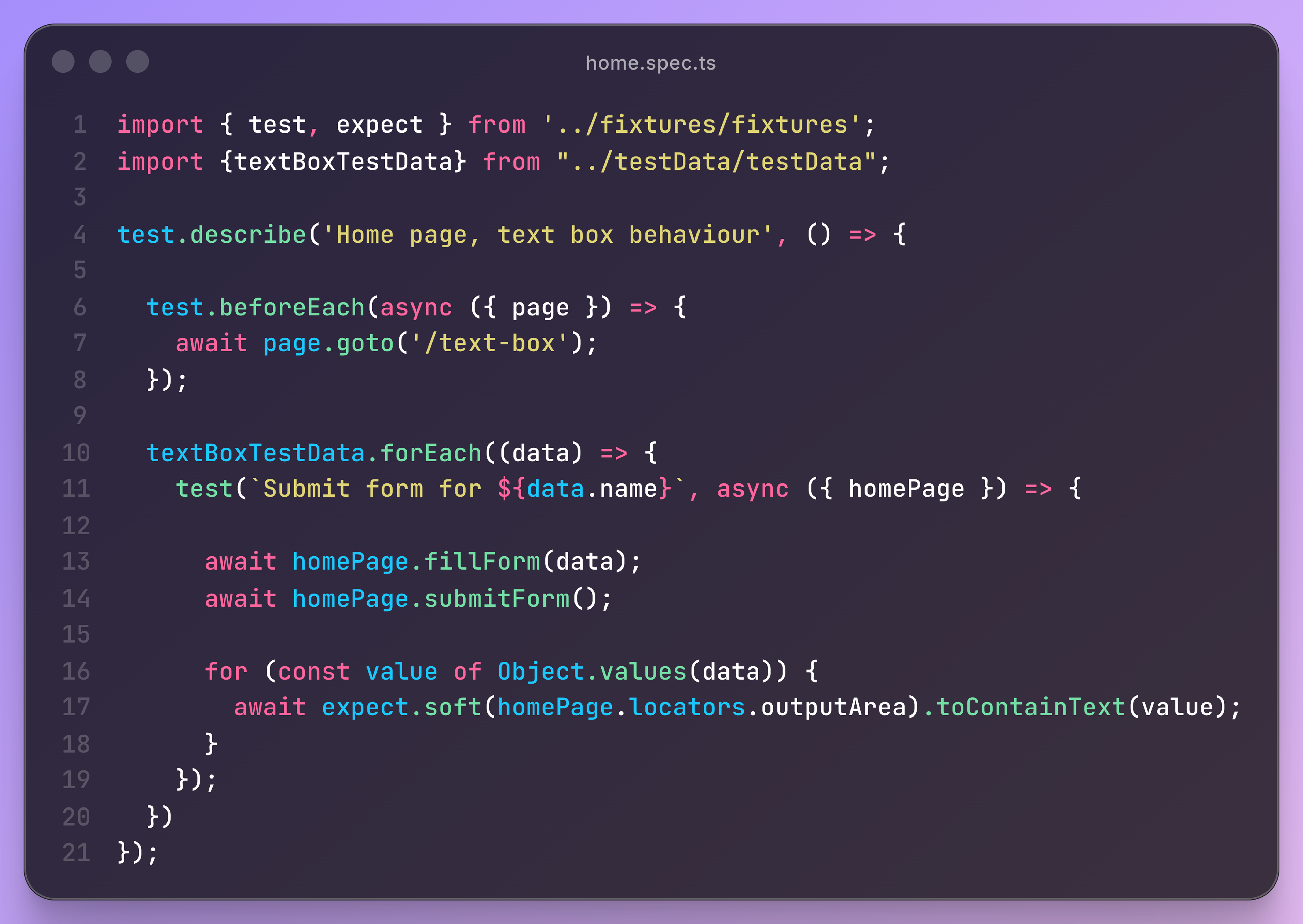

Data-Driven Testing

With Playwright, you can also use parameterized runs, which allow you to supply input variations as arrays. It’s a perfect approach for different forms, functional scenarios, and validations that need various data combinations.

For larger datasets, you can use external data files like JSON or CSV to import them into tests. This allows you to avoid unnecessary duplications and keep the code clean for maximum effectiveness and clarity.

Component Testing

Many testers are questioning when and why to combine component and E2E testing. The fact is that component testing enables fast feedback by running the UI components in isolation. This makes it a perfect tool for verifying logic and interacting with the backend.

However, when combined with end-to-end testing, the result can reduce load on full-stack scenarios and improve case coverage for complex frameworks such as React or Vue.

Authentication Reuse

Using Playwright storageState, you can skip the login process during authentication. Therefore, there is no need to complete the login process for every single testing scenario. A single login process is performed once, and all the subsequent tests reuse the same credentials.

As a result, it significantly increases the suite speed, especially in CI pipelines, where repetitive logins cost your time and money.

Integrating Playwright into CI/CD Pipelines

Integrating Playwright into your CI/CD pipelines can automate testing, ensure consistency across different environments, and provide valuable debugging insights. All of which allows companies to create effective and scalable workflows for modern DevOps processes.

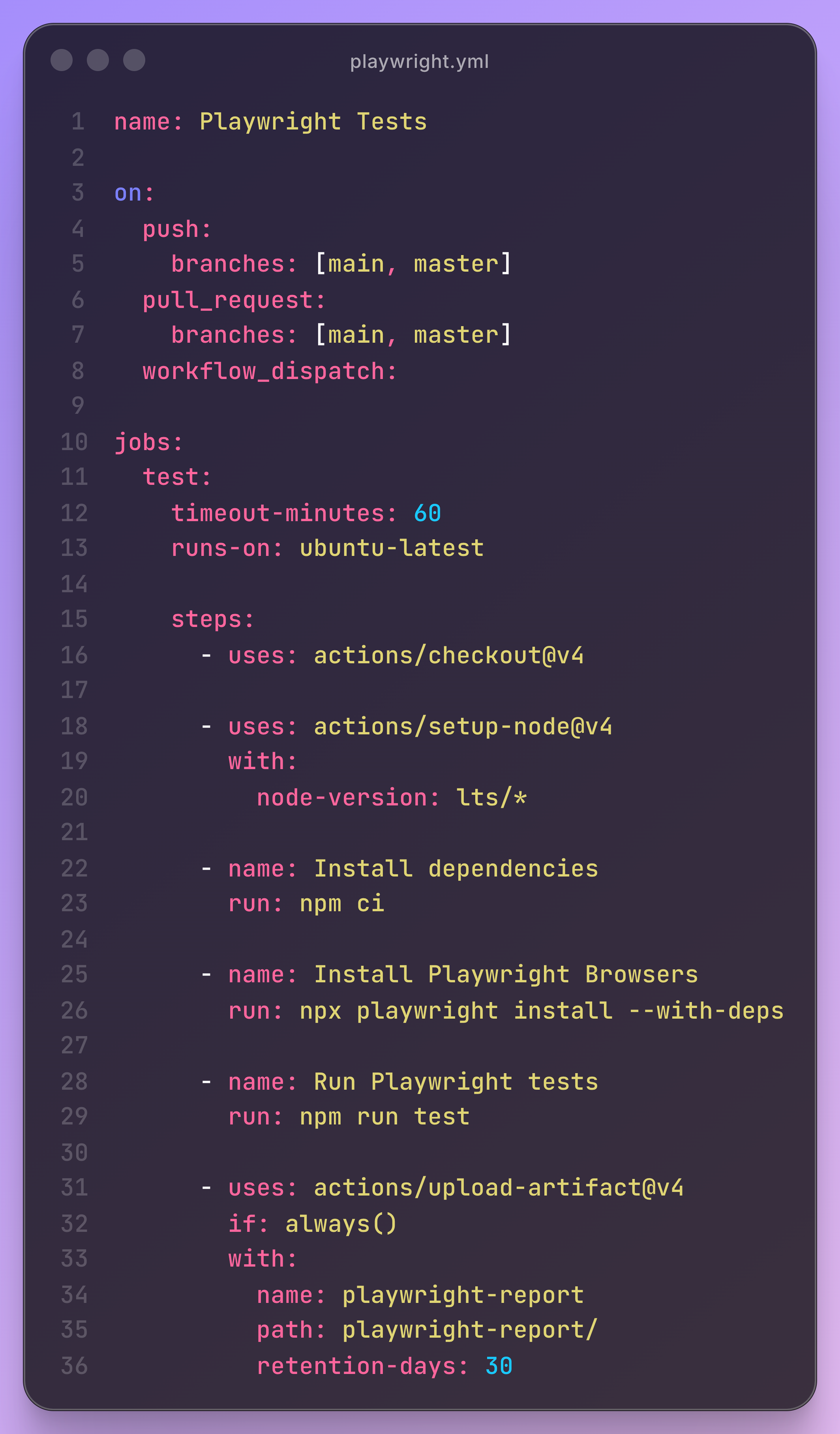

GitHub Actions Example

In the GitHub example, at first, you need to set up Node.js, and install the required dependencies. Then, install the Playwright browsers needed for testing, and follow up with the test suite by using the npx playwright test. Finally, upload the reports as workflow artifacts to keep track of the issues.

GitLab, Jenkins, and Azure DevOps Pipelines

To start using GitLab, define the pipeline stages and configurations in a file named: .gitlab-ci.yml. At the same time, specify steps to install dependencies, store artifacts, and run tests. In the Jenkins case, use the Node.js or Docker agents to ensure a consistent environment for Playwright commands. Finally, for Azure, you will have to integrate the Playwright test directly into the YAML pipeline.

Parallel Test Execution on Multiple Runners

Another Playwright advantage is that it allows you to split tests across multiple CI runners, reducing overall execution time. Additionally, test sharding can be introduced using the –shard=N/M option, which distributes suites across several machines. As a result, it provides faster execution and more convenient CI feedback.

Storing Test Artifacts (Videos, Traces, Screenshots)

Creation of test artifacts, such as videos, screenshots, and reports, can be easily automated by enabling the Playwright reporters. Then these artifacts are uploaded to the CI environment for analysis of failed tests. By keeping the artifacts, developers can debug the code quickly, review test behaviour over time, and maintain history for future audits.

Best Practices for Reliable End-to-End Automation with Playwright

Follow these best practices to apply Playwright for E2E testing and use its powerful mechanisms to the maximum:

• Keep tests atomic and independent. Each test should cover one scenario and not depend on the results of other tests. In this way, parallel testing and debugging become easier.
• Use stable selectors (data-test-id attributes). During UI changes, CSS or XPath selectors usually lead to flaky tests. Instead, purpose-built attributes like data-test-id ensure your locators are stable.
• Rely on automatic waiting. Don’t set manual wait statements unless you specifically require them, as Playwright E2E test automation waits for updates and elements to become actionable.
• Clean up test data. Reset or remove unnecessary data after every E2E testing. This prevents false positives and maintains a consistent environment.
• Manage flakiness and maintain a healthy test suite. Use retries, timeouts, and proper error documentation to track the instability patterns. Regularly review the tests, update locators, and monitor slow scenarios.

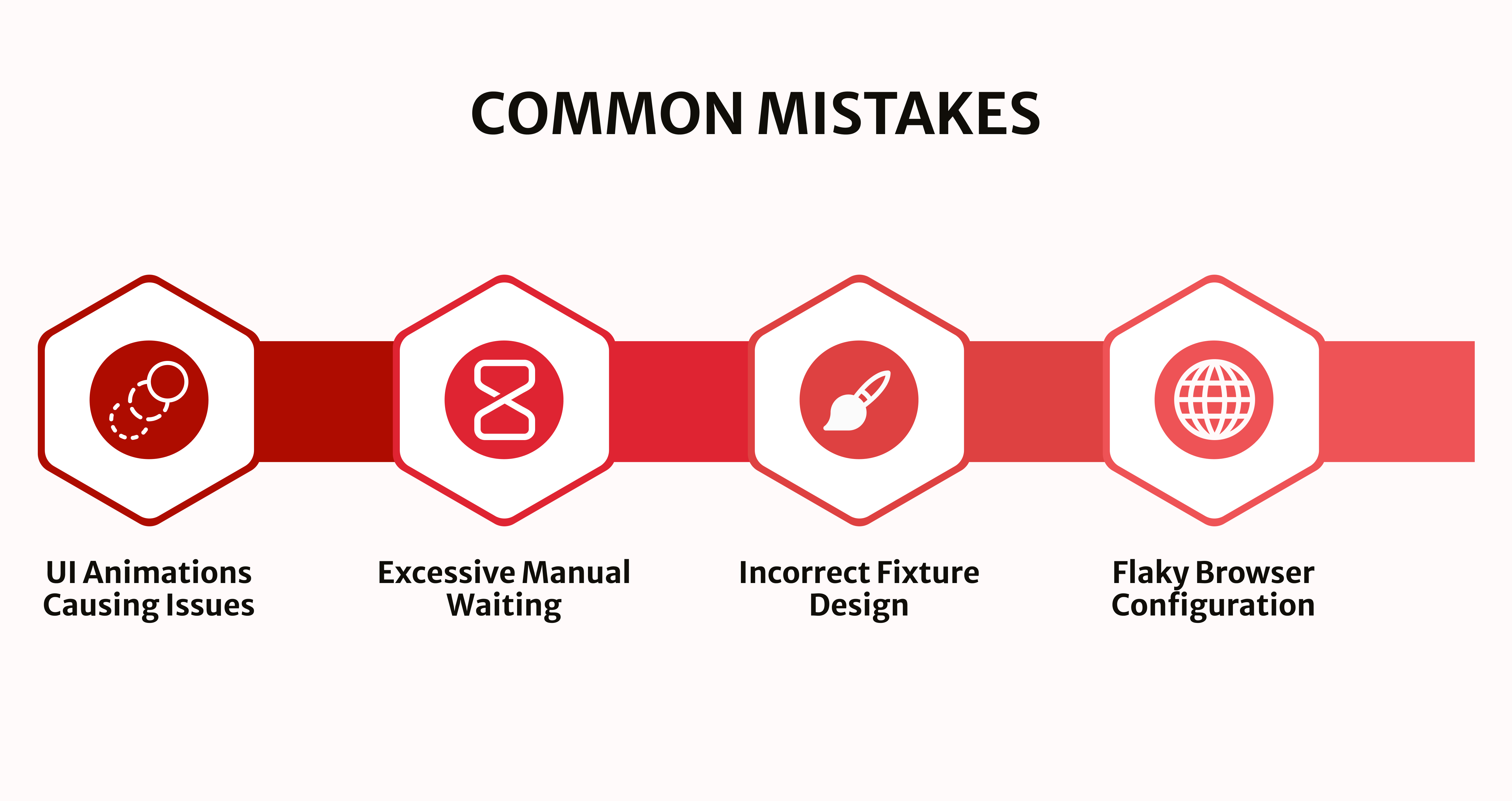

Common Mistakes and How to Avoid Them

Playwright E2E framework is a powerful instrument in the hands of QA professionals. But teams can still run into issues and slowdowns if they make these mistakes:

• Build unstable tests caused by UI animations. Dynamic UI elements often cause flaky results. Thus, the best way to receive accurate outputs is by disabling animations in test mode.
• Apply excessive manual waiting. “Wait-for-timeout” function is not the best addition to the test system as it introduces unnecessary latency and makes tests brittle. Instead, you can rely on Playwright’s waiting feature.
• Create an incorrect fixture design. Fixture setup defines whether the test will be clean or polluted. Thus, they should be isolated, reusable, and properly scoped.
• Set the misconfigured browser or context settings. When browser options are inconsistent or contexts are reused incorrectly, flakiness occurs. Each test should start with a clean context with verified headless mode, viewport, geolocation, and permissions.

Real-World Examples and Use Cases

Playwright is used for tackling modern testing challenges and validating complex application behaviors. These are the most common real-life example scenarios where this tool delivers exceptional value:

• Login flow automation. With automated authentication, the applications can handle credentials, sessions, redirects, and security checks correctly. Playwright has the option of content isolation and storage state, which can make login logic flows reliable and stable.
• Checkout process testing. Multiple processes occur during end-to-end checkouts, including cart interactions, payment processing, and confirmation steps. With automatic waiting and robust locators by Playwright, you can check every step in the pipeline.
• Hybrid API and UI tests. With this tool, you can combine API calls with UI interactions. This speeds up the process and reduces test flakiness.
• Accessibility checks. Playwright has an Axe integration. Therefore, teams can run accessibility checks directly within the same framework and ensure their products are compliant with WCAG standards.

Conclusion

Playwright is the ultimate choice for those testers who want to get a strong tool that excels in speed, reliability, and cross-browser coverage. It has everything QA teams need to set up automation successfully and integrate processes into CI/CD pipelines.

However, depending on the project needs, experts can combine Playwright functionality with other tools, such as API-only frameworks, visual regression platforms, or performance testing instruments.
